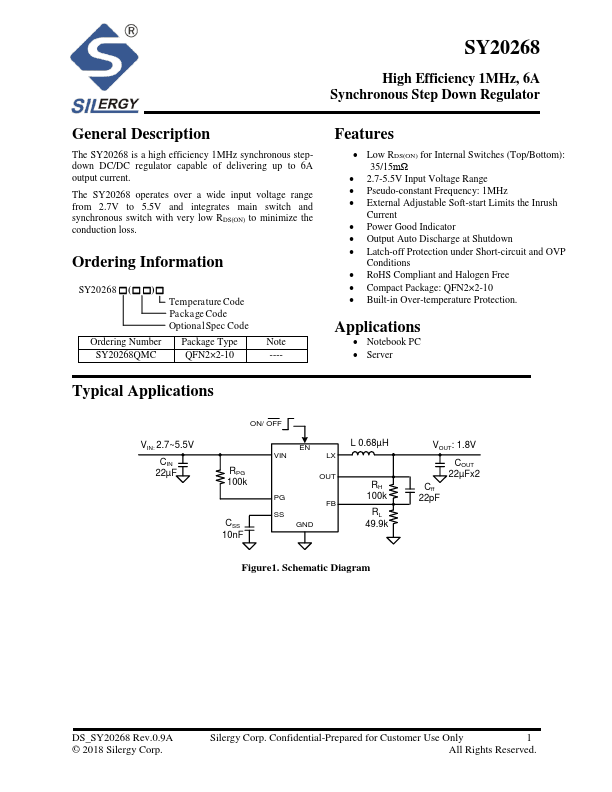

SY20268 Description
The SY20268 is a high efficiency 1MHz synchronous stepdown DC/DC regulator capable of delivering up to 6A output current. The SY20268 operates over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Ordering Information SY20268 □(□□)□ Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package Type Note...
SY20268 Key Features
- Low RDS(ON) for Internal Switches (Top/Bottom): 35/15mΩ
- 2.7-5.5V Input Voltage Range
- Pseudo-constant Frequency: 1MHz
- External Adjustable Soft-start Limits the Inrush
- Power Good Indicator
- Output Auto Discharge at Shutdown
- Latch-off Protection under Short-circuit and OVP
- RoHS pliant and Halogen Free
- pact Package: QFN2×2-10
- Built-in Over-temperature Protection
