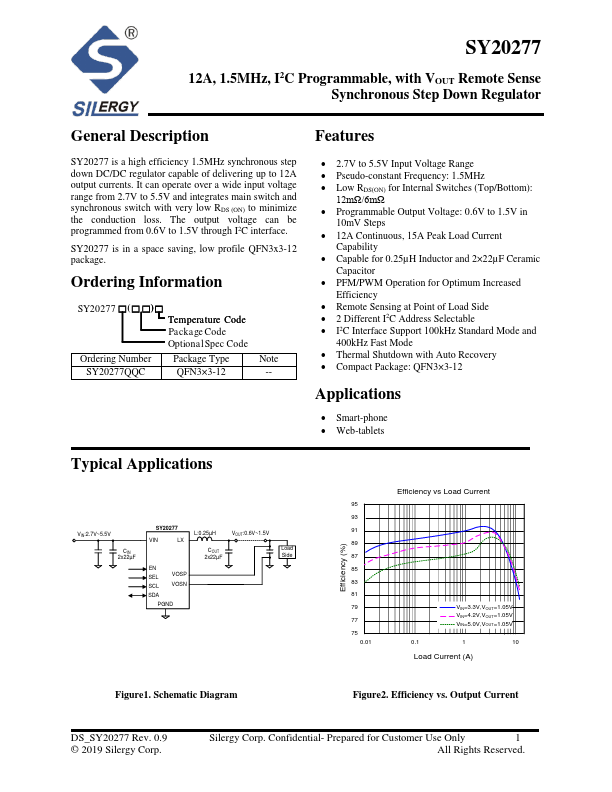

SY20277 Datasheet | Silergy

12A, 1.5MHz, I2C Programmable, with VOUT Remote Sense Synchronous Step Down Regulator General Description Features SY20277 is a high efficiency 1.5MHz synchronous step down DC/DC regulator capable of delivering up to 12A output currents. It can operate over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.6V to 1.5V through I2C interface. SY20277 is in a space saving, low profile QFN3x3-12 package. Ordering Information - (- - )- Temperature Code Pa cka ge Code Optional Spec Code Ordering Number Package Type Note SY20277QQC QFN3×3-12 -- - 2.7V to 5.5V Input Voltage Range - Pseudo-constant Frequency: 1.5MHz - Low RDS(ON) for Internal Switches (Top/Bottom): 12mΩ/6mΩ - Programmable Output Voltage: 0.6V to 1.5V in 10mV Steps - 12A Continuous, 15A Peak Load Current Capability - Capable for 0.25µH Inductor and 2×22µF Ceramic Capacitor - PFM/PWM Operation for Optimum Increased Efficiency - Remote Sensing at Point of Load Side - 2 Different I2C Address Selectable - I2C Interface Support 100kHz Standard Mode and 400kHz Fast Mode - Thermal Shutdown with Auto...
