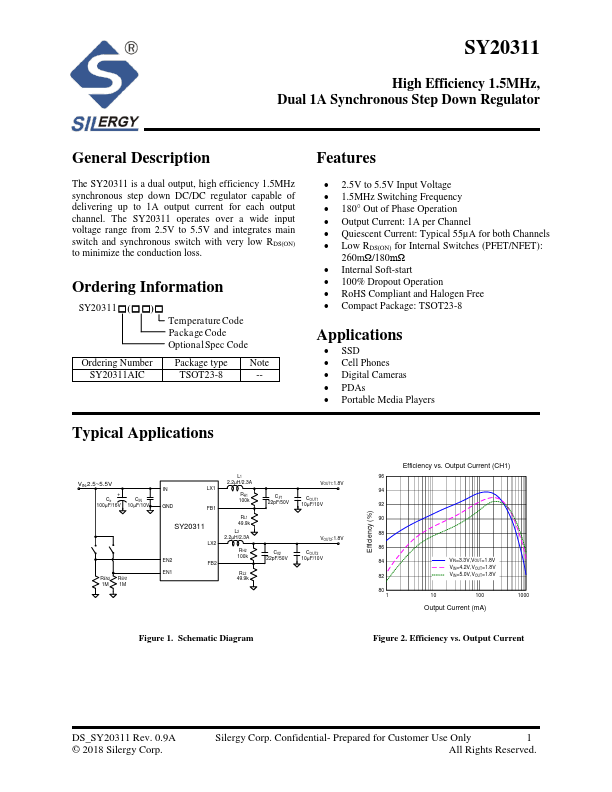

Description The SY20311 is a dual output, high efficiency 1.5MHz synchronous step down DC/DC regulator capable of delivering up to 1A output current for each output channel. The SY20311 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Ordering Information SY20311- (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20311AIC TSOT23-8 -- Features - 2.5V to 5.5V Input Voltage - 1.5MHz Switching Frequency - 180°Out of Phase Operation - Output Current: 1A per Channel - Quiescent Current: Typical 55µA for both Channels - Low RDS(ON) for Internal Switches (PFET/NFET): 260mΩ/180mΩ - Internal Soft-start - 100% Dropout Operation - Ro HS pliant and Halogen Free - pact Package: TSOT23-8 Applications - SSD - Cell Phones - Digital Cameras - PDAs - Portable Media Players Typical Applications VIN:2.5~5.5V + Ce 100μF/16V CIN 10μF/10V REN2 1M REN1 1M LX1 FB1 LX2 EN2...
