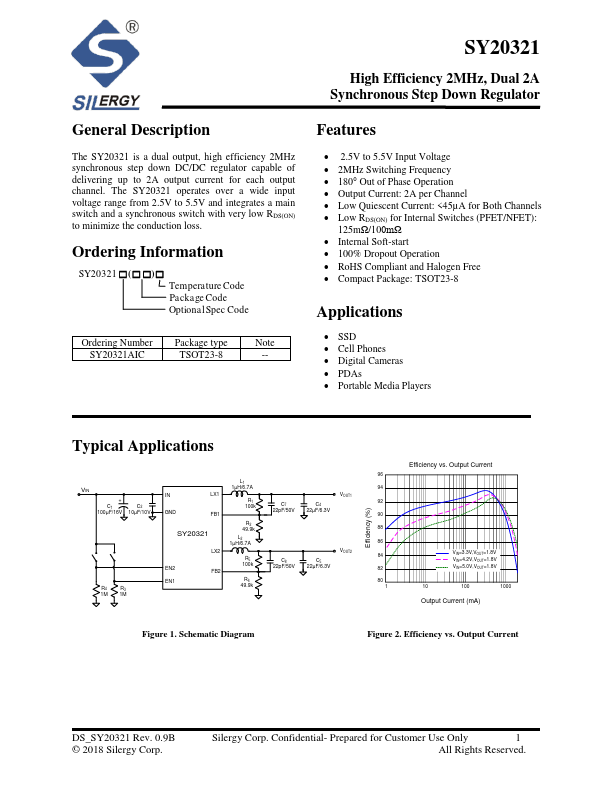

Description The SY20321 is a dual output, high efficiency 2MHz synchronous step down DC/DC regulator capable of delivering up to 2A output current for each output channel. The SY20321 operates over a wide input voltage range from 2.5V to 5.5V and integrates a main switch and a synchronous switch with very low RDS(ON) to minimize the conduction loss. Ordering Information - (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20321AIC TSOT23-8 -- Features - 2.5V to 5.5V Input Voltage - 2MHz Switching Frequency - 180°Out of Phase Operation - Output Current: 2A per Channel - Low Quiescent Current: <45µA for Both Channels - Low RDS(ON) for Internal Switches (PFET/NFET): 125mΩ/100mΩ - Internal Soft-start - 100% Dropout Operation - Ro HS pliant and Halogen Free - pact Package: TSOT23-8 Applications - SSD - Cell Phones - Digital Cameras - PDAs - Portable Media Players Typical Applications + C1 C2 100μF/16V 10μF/10V R4 R3 1M...
