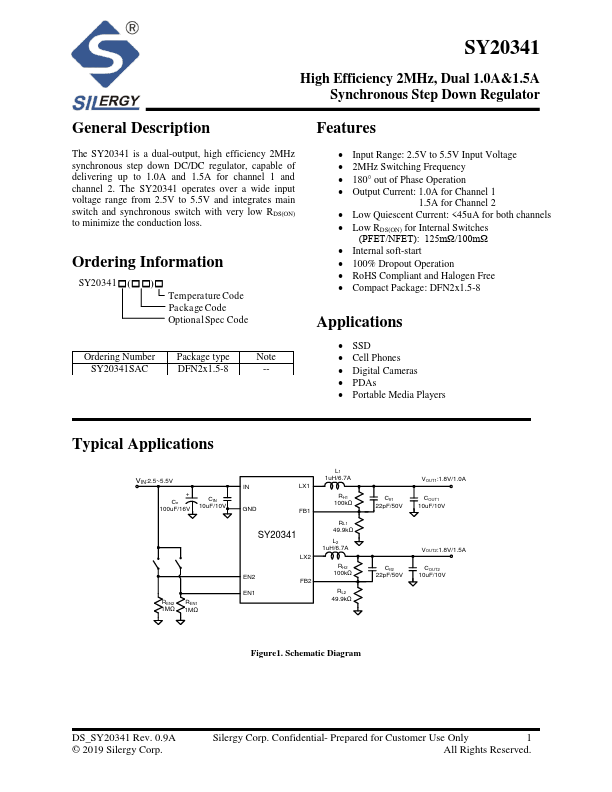

Description The SY20341 is a dual-output, high efficiency 2MHz synchronous step down DC/DC regulator, capable of delivering up to 1.0A and 1.5A for channel 1 and channel 2. The SY20341 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Ordering Information SY20341- (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20341SAC DFN2x1.5-8 -- Features - Input Range: 2.5V to 5.5V Input Voltage - 2MHz Switching Frequency - 180°out of Phase Operation - Output Current: 1.0A for Channel 1 1.5A for Channel 2 - Low Quiescent Current: <45u A for both channels - Low RDS(ON) for Internal Switches (PFET/NFET): 125mΩ/100mΩ - Internal soft-start - 100% Dropout Operation - Ro HS pliant and Halogen Free - pact Package: DFN2x1.5-8 Applications - SSD - Cell Phones - Digital Cameras - PDAs - Portable Media Players Typical Applications VIN:2.5~5.5V + Ce 100u F/16V CIN 10u F/10V REN2 1MΩ REN1 1MΩ LX1 FB1 LX2...
