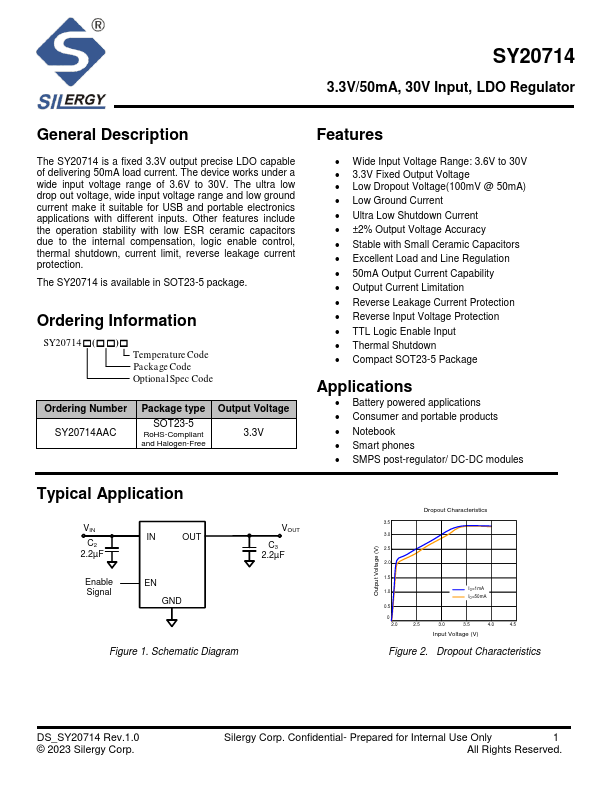

SY20714
Description
The SY20714 is a fixed 3.3V output precise LDO capable of delivering 50m A load current. The device works under a wide input voltage range of 3.6V to 30V. The ultra low drop out voltage, wide input voltage range and low ground current make it suitable for USB and portable electronics applications with different inputs. Other features include the operation stability with low ESR ceramic capacitors due to the internal pensation, logic enable control, thermal shutdown, current limit, reverse leakage current protection.
The SY20714 is available in SOT23-5 package.
Ordering Information
SY20714- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number SY20714AAC
Package type
SOT23-5
Ro HS-pliant and Halogen-Free
Output Voltage 3.3V
Features
- Wide Input Voltage Range: 3.6V to 30V
- 3.3V Fixed Output Voltage
- Low Dropout Voltage(100m V @ 50m A)
- Low Ground Current
- Ultra Low Shutdown Current
- ±2% Output Voltage Accuracy
- Stable with Small Ceramic Capacitors
-...
