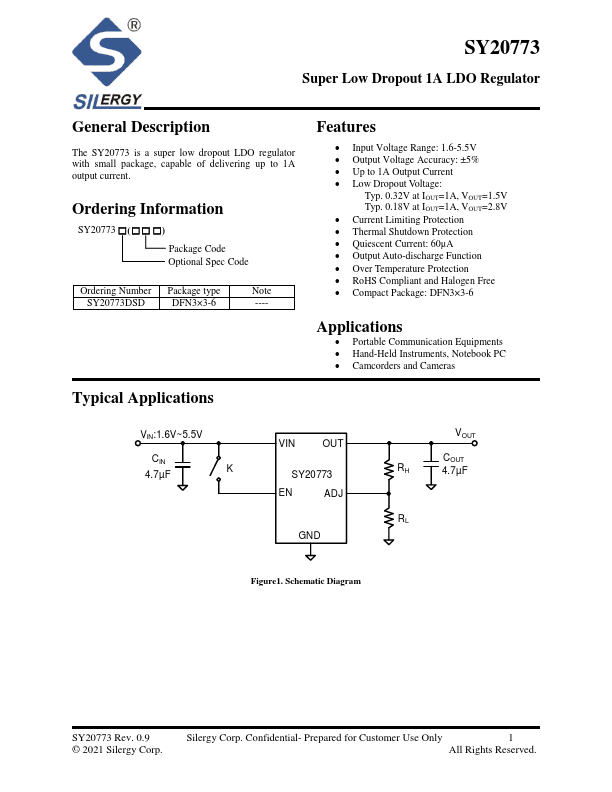

SY20773
Description
The SY20773 is a super low dropout LDO regulator with small package, capable of delivering up to 1A output current.
Ordering Information
- (-
- - )
Package Code Optional Spec Code
Ordering Number Package type
Note
SY20773DSD
DFN3×3-6
----
Features
- Input Voltage Range: 1.6-5.5V
- Output Voltage Accuracy: ±5%
- Up to 1A Output Current
- Low Dropout Voltage:
Typ. 0.32V at IOUT=1A, VOUT=1.5V Typ. 0.18V at IOUT=1A, VOUT=2.8V
- Current Limiting Protection
- Thermal Shutdown Protection
- Quiescent Current: 60μA
- Output Auto-discharge Function
- Over Temperature Protection
- Ro HS pliant and Halogen Free
- pact Package: DFN3×3-6
Applications
- Portable munication Equipments
- Hand-Held Instruments, Notebook PC
- Camcorders and Cameras
Typical Applications
VIN:1.6V~5.5V
4.7µF
VOUT
COUT
4.7µF
Figure1. Schematic Diagram
SY20773 Rev. 0.9 © 2021 Silergy Corp.
