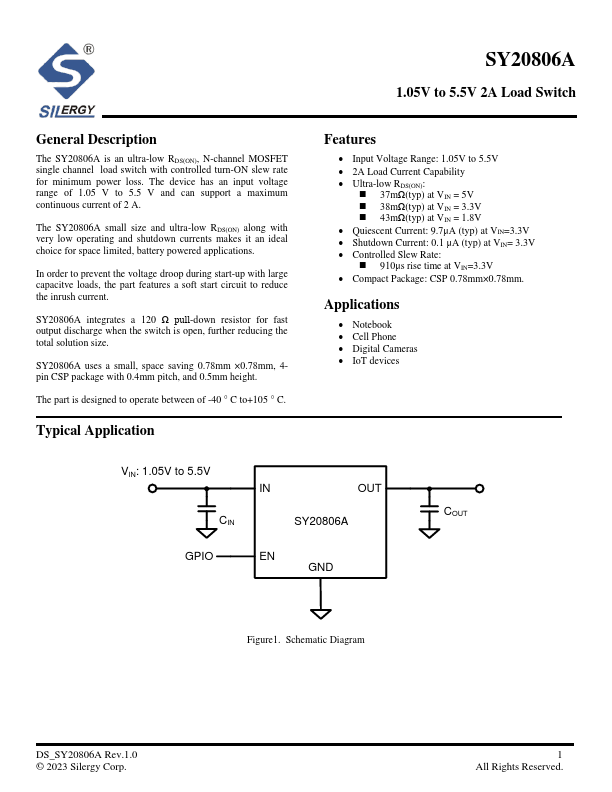

SY20806A Overview
Description
The SY20806A is an ultra-low RDS(ON), N-channel MOSFET single channel load switch with controlled turn-ON slew rate for minimum power loss. The device has an input voltage range of 1.05 V to 5.5 V and can support a maximum continuous current of 2 A.
Key Features
- Input Voltage Range: 1.05V to 5.5V
- 2A Load Current Capability
- Ultra-low RDS(ON)
- 37mΩ(typ) at VIN = 5V
- 38mΩ(typ) at VIN = 3.3V
