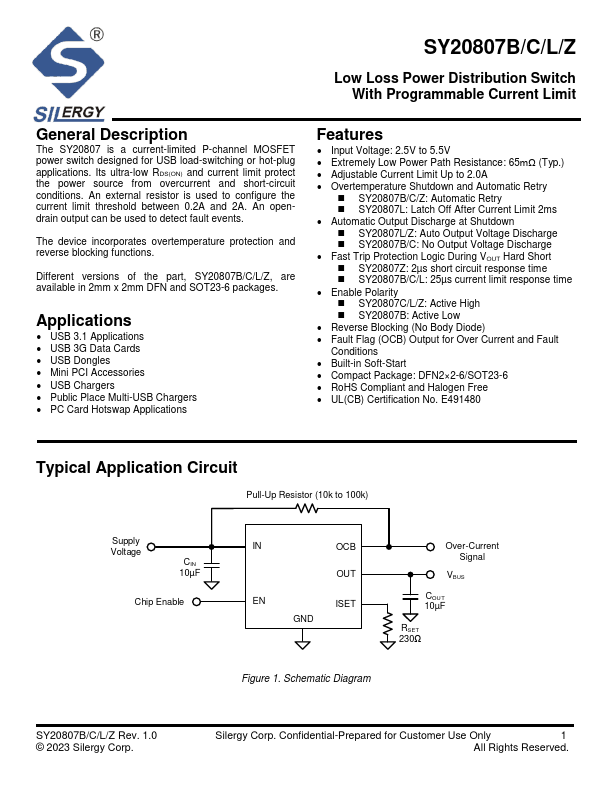

SY20807C Overview
The SY20807 is a current-limited P-channel MOSFET power switch designed for USB load-switching or hot-plug applications. Its ultra-low RDS(ON) and current limit protect the power source from overcurrent and short-circuit conditions. An external resistor is used to configure the current limit threshold between 0.2A and 2A.
SY20807C Key Features
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ (Typ.)
- Adjustable Current Limit Up to 2.0A
- Overtemperature Shutdown and Automatic Retry
- SY20807B/C/Z: Automatic Retry
- SY20807L: Latch Off After Current Limit 2ms
- Automatic Output Discharge at Shutdown
- SY20807L/Z: Auto Output Voltage Discharge
- SY20807B/C: No Output Voltage Discharge
- Fast Trip Protection Logic During VOUT Hard Short
