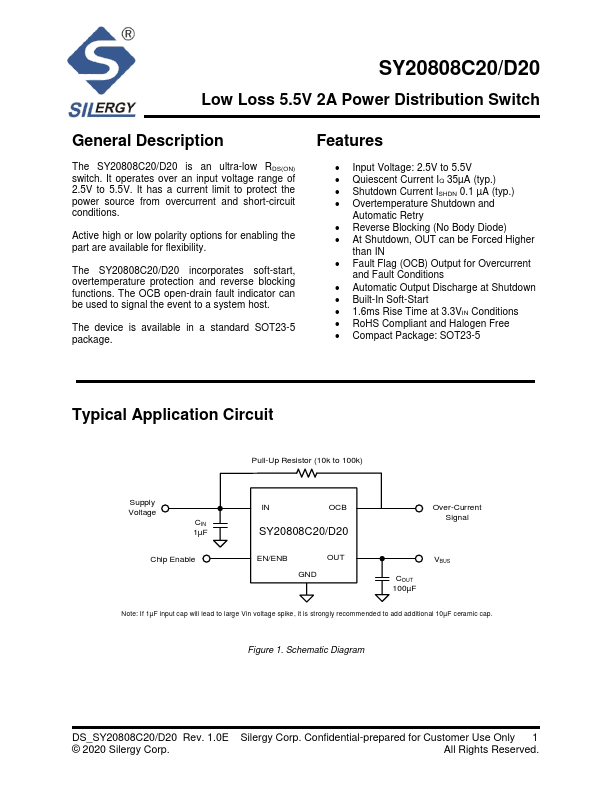

Silergy SY20808C20
The SY20808C20/D20 is an ultra-low RDS(ON) switch. It operates over an input voltage range of 2.5V to 5.5V. It has a current limit to protect the power source from overcurrent and short-circuit conditions.| Part No. | SY20808C20 |
|---|---|
| Datasheet | SY20808C20 Download |
| Manufacturer |  Silergy |
| Description | Low Loss 5.5V 2A Power Distribution Switch |
| Buy | Stock & Price |
GENERAL DESCRIPTION
Active high or low polarity options for enabling the part are available for flexibility. The SY20808C20/D20 incorporates soft-start, overtemperature protection and reverse blocking functions. The OCB open-drain fault indicator can be used to signal the event to a system host. The device is available in a standard SOT23-5 package.FEATURES
● Input Voltage: 2.5V to 5.5V● Quiescent Current IQ 35µA (typ.)
● Shutdown Current ISHDN 0.1 µA (typ.)
● Overtemperature Shutdown and Automatic Retry
● Reverse Blocking (No Body Diode)
● At Shutdown, OUT can be Forced Higher than IN
● Fault Flag (OCB) Output for Overcurrent and Fault Conditions
● Automatic Output Discharge at Shutdown
● Built-In Soft-Start
● 1.6ms Rise Time at 3.3VIN Conditions
● RoHS Compliant and Halogen Free
● Compact Package: SOT23-5 Typical Application Circuit Pull-Up Resistor (10k to 100k) Supply Voltage CIN 1µF Chip Enable IN OCB SY20808C20/D20 EN/ENB OUT GND Over-Current Signal COUT 100µF VBUS Note: If 1µF input cap will lead to large Vin voltage spike , it is strongly recommended to add additional 10µF ceramic cap.
