SY20809 Datasheet (Silergy)

Part SY20809
Description 6V 3A Low Loss Power Distribution Switch
Manufacturer Silergy
Size 708.55 KB
SY20809 Datasheet (PDF) Download
Pricing from 0.91 USD, available from Mouser.
🏠
Silergy

SY20809 Overview

Description

The SY20809 is an ultra-low RDS(ON) power distribution switch. It uses a resistor programmable current limit to protect the power source from overcurrent and short-circuit conditions.

Key Features

  • Input Voltage: 2.4V to 6V
  • 3A Load Current Capability
  • Quiescent Current IQ 38µA (typ.)
  • Shutdown Current ISHDN 0.2µA (typ.)
  • Programmable Current Limit

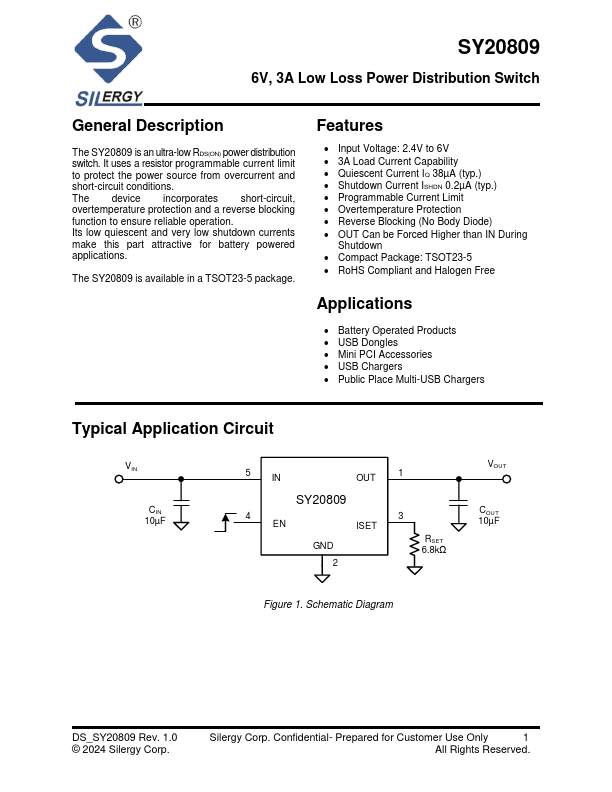

SY20809 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Mouser 0 1+ : 0.91 USD
10+ : 0.545 USD
50+ : 0.455 USD
100+ : 0.343 USD		 View Offer
