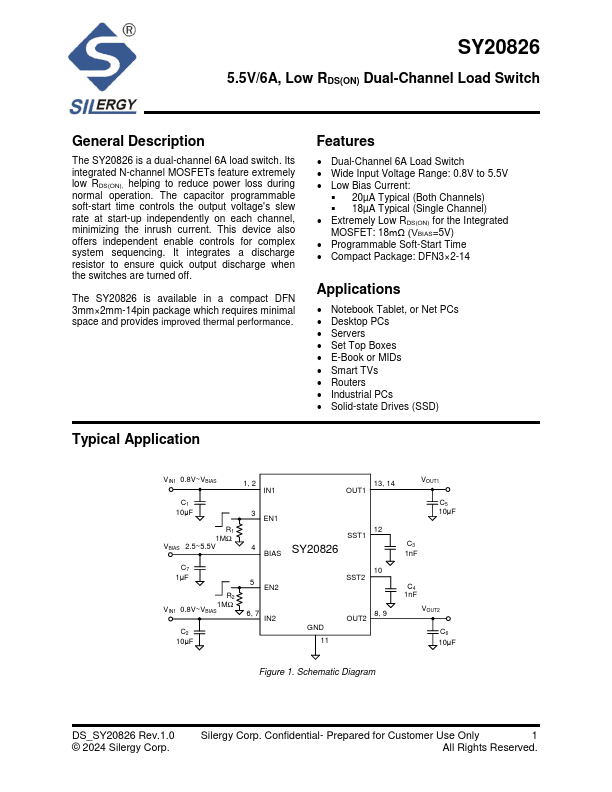

5.5V/6A, Low RDS(ON) Dual-Channel Load Switch General Description The SY20826 is a dual-channel 6A load switch. Its integrated N-channel MOSFETs feature extremely low RDS(ON), helping to reduce power loss during normal operation. The capacitor programmable soft-start time controls the output voltage's slew rate at start-up independently on each channel, minimizing the inrush current. This device also offers independent enable controls for plex system sequencing. It integrates a discharge resistor to ensure quick output discharge when the switches are turned off. The SY20826 is available in a pact DFN 3mm×2mm-14pin package which requires minimal space and provides improved thermal performance. Features - Dual-Channel 6A Load Switch - Wide Input Voltage Range: 0.8V to 5.5V - Low Bias Current: - 20µA Typical (Both Channels) - 18µA Typical (Single Channel) - Extremely Low RDS(ON) for the Integrated MOSFET: 18mΩ (VBIAS=5V) - Programmable Soft-Start Time - pact Package: DFN3×2-14 Applications - Notebook Tablet, or Net PCs - Desktop PCs - Servers - Set Top Boxes - E-Book or MIDs - Smart TVs - Routers - Industrial PCs - Solid-state Drives (SSD) Typical Application VIN1 0.8V~VBIAS C1 10μF R1 1M VBIAS 2.5~5.5V 1, 2 IN1 3 EN1 4...
