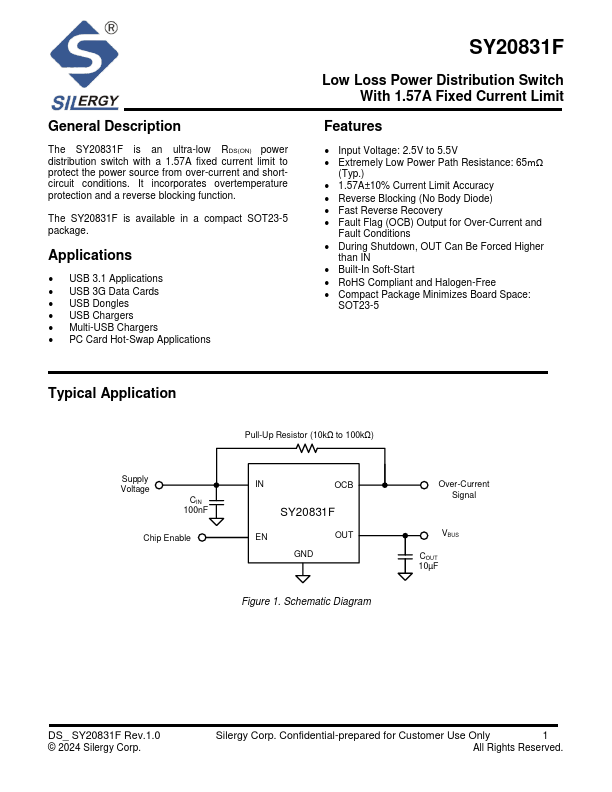

SY20831F Overview
Description
The SY20831F is an ultra-low RDS(ON) power distribution switch with a 1.57A fixed current limit to protect the power source from over-current and shortcircuit conditions. It incorporates overtemperature protection and a reverse blocking function.
Key Features
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ (Typ.)
- 1.57A±10% Current Limit Accuracy
- Reverse Blocking (No Body Diode)
- Fast Reverse Recovery
