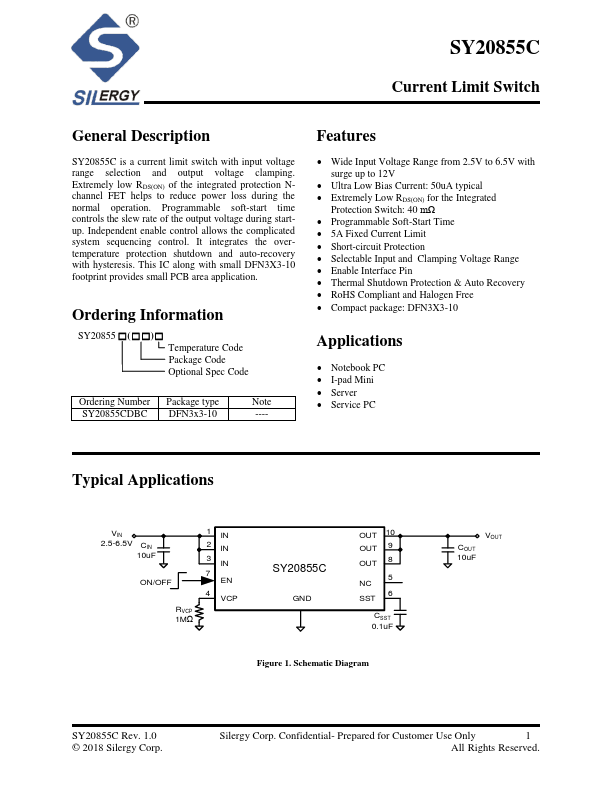

SY20855C
Description
SY20855C is a current limit switch with input voltage range selection and output voltage clamping.
Key Features
- Wide Input Voltage Range from 2.5V to 6.5V with surge up to 12V
- Ultra Low Bias Current: 50uA typical
- Extremely Low RDS(ON) for the Integrated
- Programmable Soft-Start Time
- 5A Fixed Current Limit
- Short-circuit Protection
- Selectable Input and Clamping Voltage Range
- Enable Interface Pin
- Thermal Shutdown Protection & Auto Recovery
- RoHS pliant and Halogen Free
Applications
- Notebook PC
