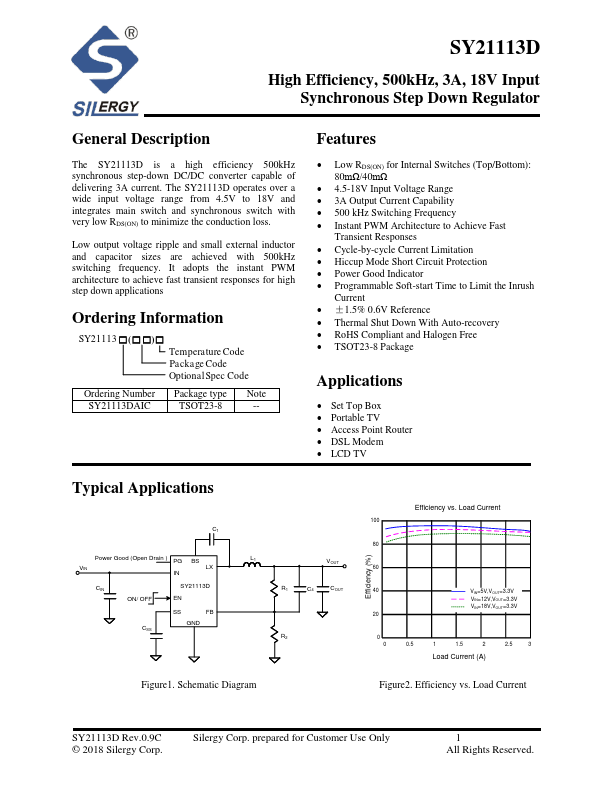

SY21113D
Description
The SY21113D is a high efficiency 500kHz synchronous step-down DC/DC converter capable of delivering 3A current. The SY21113D operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Key Features
- Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ
- 4.5-18V Input Voltage Range
- 3A Output Current Capability
- 500 kHz Switching Frequency
- Instant PWM Architecture to Achieve Fast Transient Responses
- Cycle-by-cycle Current Limitation
- Hiccup Mode Short Circuit Protection
- Power Good Indicator
- Programmable Soft-start Time to Limit the Inrush Current
- ±1.5% 0.6V Reference
