SY21153A
Description

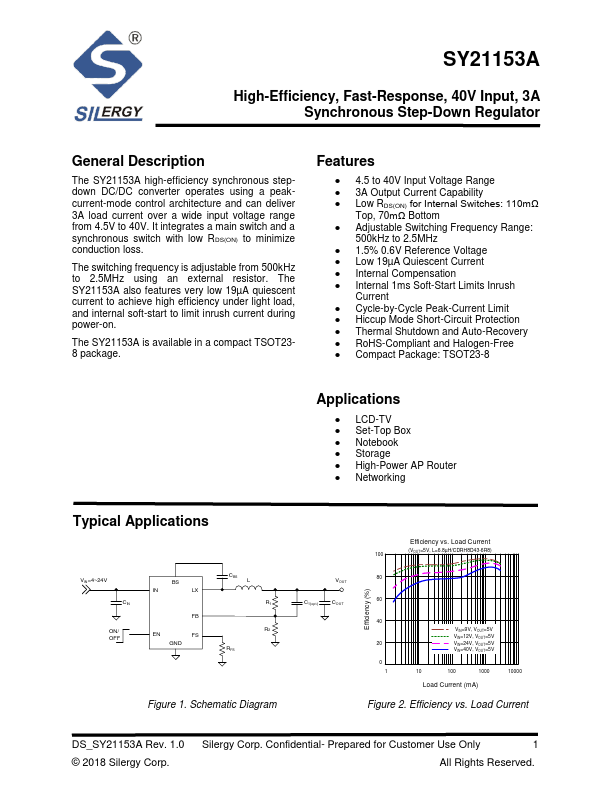

The SY21153A high-efficiency synchronous stepdown DC/DC converter operates using a peakcurrent-mode control architecture and can deliver 3A load current over a wide input voltage range from 4.5V to 40V. It integrates a main switch and a synchronous switch with low RDS(ON) to minimize conduction loss.
Key Features
- 4.5 to 40V Input Voltage Range
- 3A Output Current Capability
- Low RDS(ON) for Internal Switches: 110mΩ Top, 70mΩ Bottom
- Adjustable Switching Frequency Range: 500kHz to 2.5MHz
- 1.5% 0.6V Reference Voltage
- Low 19µA Quiescent Current
- Internal pensation
- Internal 1ms Soft-Start Limits Inrush Current
- Cycle-by-Cycle Peak-Current Limit
- Hiccup Mode Short-Circuit Protection
