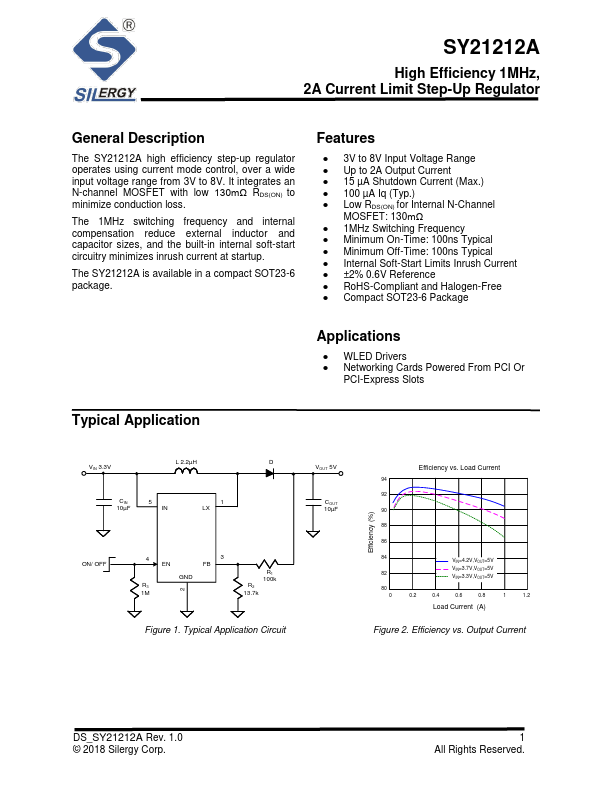

SY21212A
Description
The SY21212A high efficiency step-up regulator operates using current mode control, over a wide input voltage range from 3V to 8V. It integrates an N-channel MOSFET with low 130mΩ RDS(ON) to minimize conduction loss.
The 1MHz switching frequency and internal pensation reduce external inductor and capacitor sizes, and the built-in internal soft-start circuitry minimizes inrush current at startup.
The SY21212A is available in a pact SOT23-6 package.
Features
- 3V to 8V Input Voltage Range
- Up to 2A Output Current
- 15 µA Shutdown Current (Max.)
- 100 µA Iq (Typ.)
- Low RDS(ON) for Internal N-Channel
MOSFET: 130mΩ
- 1MHz Switching Frequency
- Minimum On-Time: 100ns Typical
- Minimum Off-Time: 100ns Typical
- Internal Soft-Start Limits Inrush Current
- ±2% 0.6V Reference
- Ro HS-pliant and Halogen-Free
- pact SOT23-6 Package
Applications
- WLED Drivers
- Networking Cards Powered From PCI Or
PCI-Express Slots
Typical Application
2 Efficiency (%)
VIN 3.3V
L 2.2µH
CIN...
