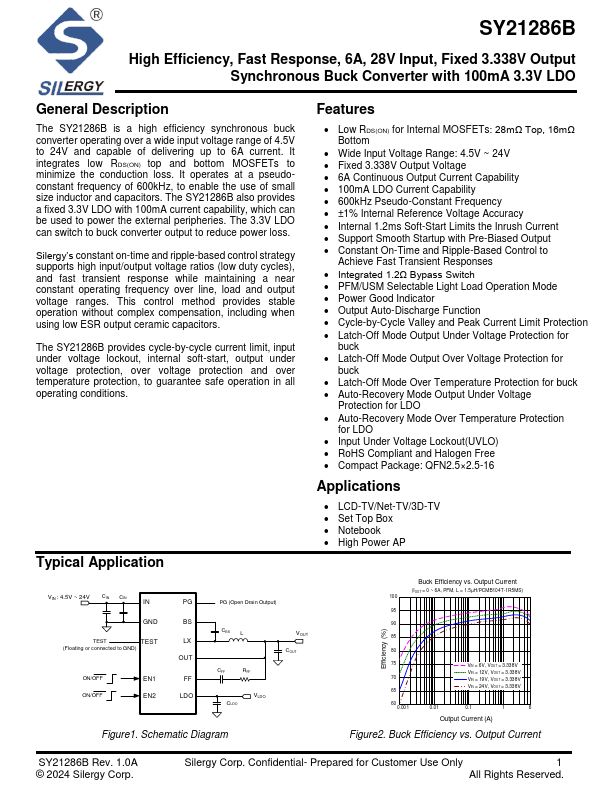

SY21286B
Overview
- Low RDS(ON) for Internal MOSFETs: 28mΩ Top, 16mΩ Bottom
- Wide Input Voltage Range: 4.5V ~ 24V
- Fixed 3.338V Output Voltage
- 6A Continuous Output Current Capability
- 100mA LDO Current Capability
- 600kHz Pseudo-Constant Frequency
- ±1% Internal Reference Voltage Accuracy
- Internal 1.2ms Soft-Start Limits the Inrush Current
- Support Smooth Startup with Pre-Biased Output
- Constant On-Time and Ripple-Based Control to Achieve Fast Transient Responses
