SY23565 Overview
Key Specifications
Key Features

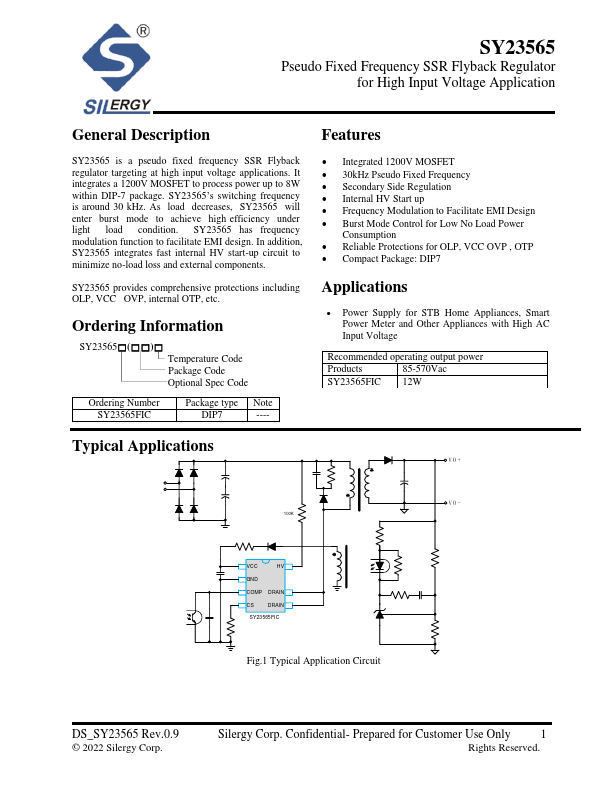

- SY23565 is a pseudo fixed frequency SSR Flyback regulator targeting at high input voltage applications
- It integrates a 1200V MOSFET to process power up to 8W within DIP-7 package
- SY23565’s switching frequency is around 30 kHz
- As load decreases, SY23565 will enter burst mode to achieve high efficiency under light load condition
- SY23565 has frequency modulation function to facilitate EMI design
