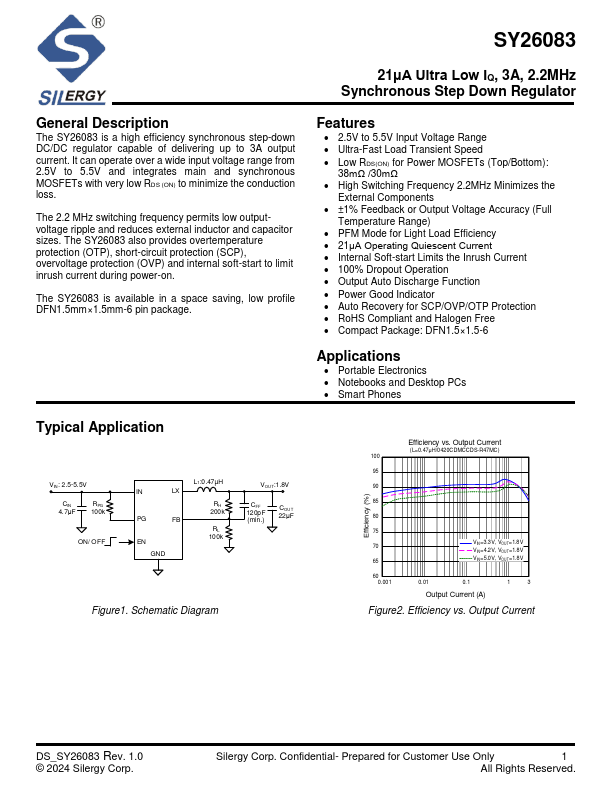

SY26083 Datasheet Summary
21μA Ultra Low IQ, 3A, 2.2MHz Synchronous Step Down Regulator
General Description
The SY26083 is a high efficiency synchronous step-down DC/DC regulator capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrates main and synchronous MOSFETs with very low RDS (ON) to minimize the conduction loss.
The 2.2 MHz switching frequency permits low outputvoltage ripple and reduces external inductor and capacitor sizes. The SY26083 also provides overtemperature protection (OTP), short-circuit protection (SCP), overvoltage protection (OVP) and internal soft-start to limit inrush current during power-on.
The SY26083 is available in a space saving, low profile DFN1.5mm×1.5mm-6 pin package.
Features
- 2.5V to 5.5V Input Voltage Range
- Ultra-Fast Load Transient Speed
- Low RDS(ON) for Power MOSFETs (Top/Bottom):
38mΩ /30mΩ
- High Switching Frequency 2.2MHz Minimizes the
External ponents
- ±1% Feedback or Output Voltage Accuracy (Full
Temperature Range)
- PFM Mode for Light Load Efficiency
- 21μA Operating Quiescent Current
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Output Auto Discharge Function
- Power Good Indicator
- Auto Recovery for SCP/OVP/OTP Protection
- RoHS pliant and Halogen Free
- pact Package: DFN1.5×1.5-6
Applications
- Portable Electronics
- Notebooks and Desktop PCs
- Smart Phones
Typical Application
VIN: 2.5-5. 5V
CIN 4....
