SY26103 Datasheet | Silergy

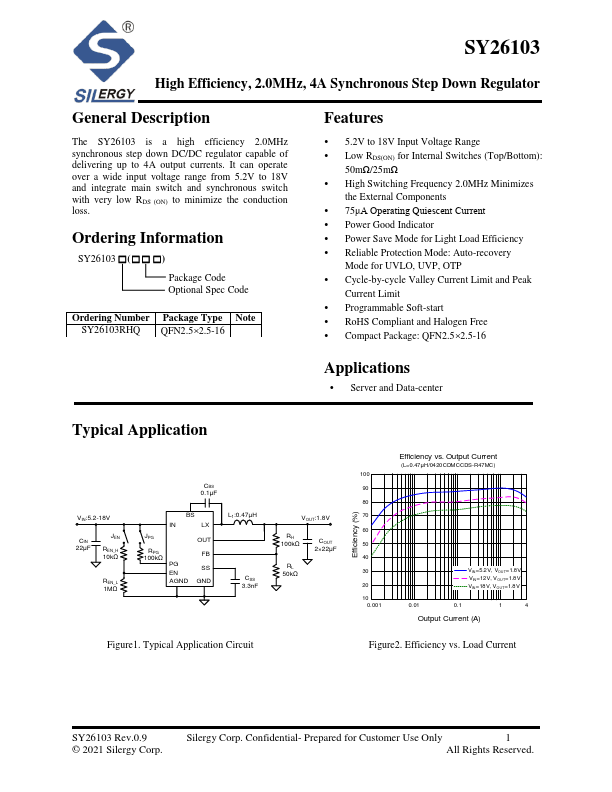

High Efficiency, 2.0MHz, 4A Synchronous Step Down Regulator General Description The SY26103 is a high efficiency 2.0MHz synchronous step down DC/DC regulator capable of delivering up to 4A output currents. It can operate over a wide input voltage range from 5.2V to 18V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number Package Type Note SY26103RHQ QFN2.52.5-16 Features - 5.2V to 18V Input Voltage Range - Low RDS(ON) for Internal Switches (Top/Bottom): 50mΩ/25mΩ - High Switching Frequency 2.0MHz Minimizes the External ponents - 75μA Operating Quiescent Current - Power Good Indicator - Power Save Mode for Light Load Efficiency - Reliable Protection Mode: Auto-recovery Mode for UVLO, UVP, OTP - Cycle-by-cycle Valley Current Limit and Peak Current Limit - Programmable Soft-start - RoHS pliant and Halogen Free - pact Package: QFN2.52.5-16 Applications - Server and Data-center Typical Application VIN:5.2-18V CIN 22μF JEN REN_H...
