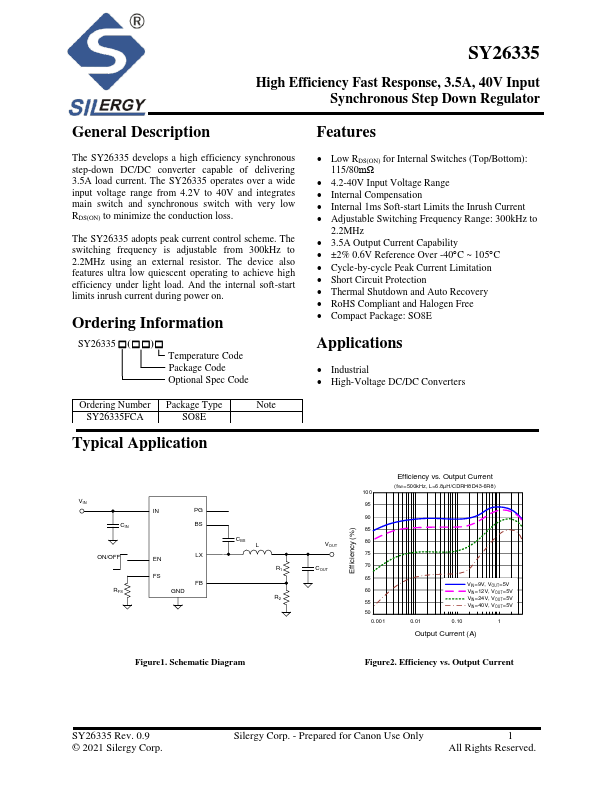

High Efficiency Fast Response, 3.5A, 40V Input Synchronous Step Down Regulator General Description The SY26335 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 3.5A load current. The SY26335 operates over a wide input voltage range from 4.2V to 40V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY26335 adopts peak current control scheme. The switching frequency is adjustable from 300kHz to 2.2MHz using an external resistor. The device also Features ultra low quiescent operating to achieve high efficiency under light load. And the internal soft-start limits inrush current during power on. Ordering Information - (- - )- Temperature Code Package Code Optional Spec Code Ordering Number Package Type Note SY26335FCA SO8E Typical Application Features - Low RDS(ON) for Internal Switches (Top/Bottom): 115/80mΩ - 4.2-40V Input Voltage Range - Internal pensation - Internal 1ms Soft-start Limits the Inrush Current - Adjustable Switching Frequency Range: 300kHz to 2.2MHz - 3.5A Output Current Capability - ±2% 0.6V Reference Over -40C ~ 105C - Cycle-by-cycle Peak Current Limitation - Short Circuit Protection - Thermal Shutdown and Auto Recovery - RoHS pliant and Halogen Free - pact Package: SO8E Applications - Industrial - High-Voltage DC/DC...
