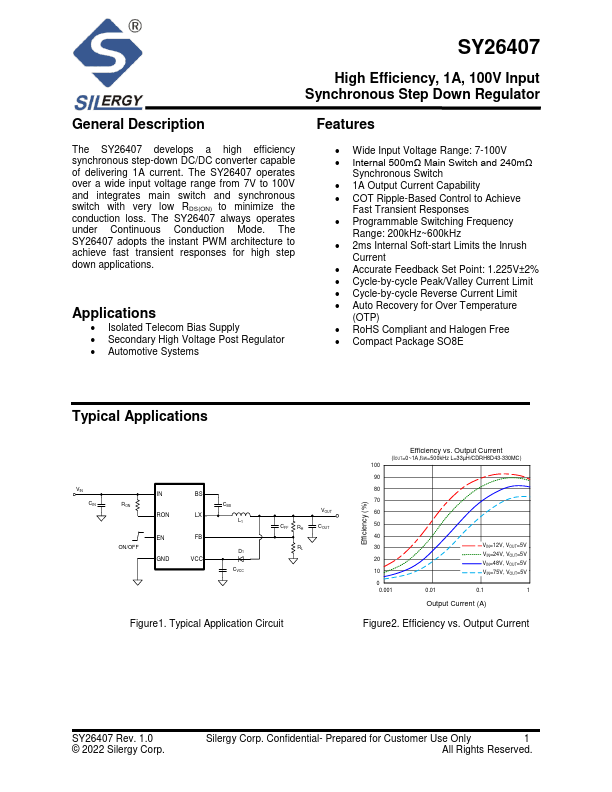

High Efficiency, 1A, 100V Input Synchronous Step Down Regulator General Description The SY26407 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 1A current. The SY26407 operates over a wide input voltage range from 7V to 100V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY26407 always operates under Continuous Conduction Mode. The SY26407 adopts the instant PWM architecture to achieve fast transient responses for high step down applications. Applications - Isolated Tele Bias Supply - Secondary High Voltage Post Regulator - Automotive Systems Features - Wide Input Voltage Range: 7-100V - Internal 500mΩ Main Switch and 240mΩ Synchronous Switch - 1A Output Current Capability - COT Ripple-Based Control to Achieve Fast Transient Responses - Programmable Switching Frequency Range: 200k Hz~600k Hz - 2ms Internal Soft-start Limits the Inrush Current - Accurate Feedback Set Point: 1.225V±2% - Cycle-by-cycle Peak/Valley Current Limit - Cycle-by-cycle Reverse Current Limit - Auto Recovery for Over Temperature (OTP) - Ro HS pliant and Halogen Free - pact Package SO8E Typical Applications VIN CIN IN RON ON/OFF EN...
