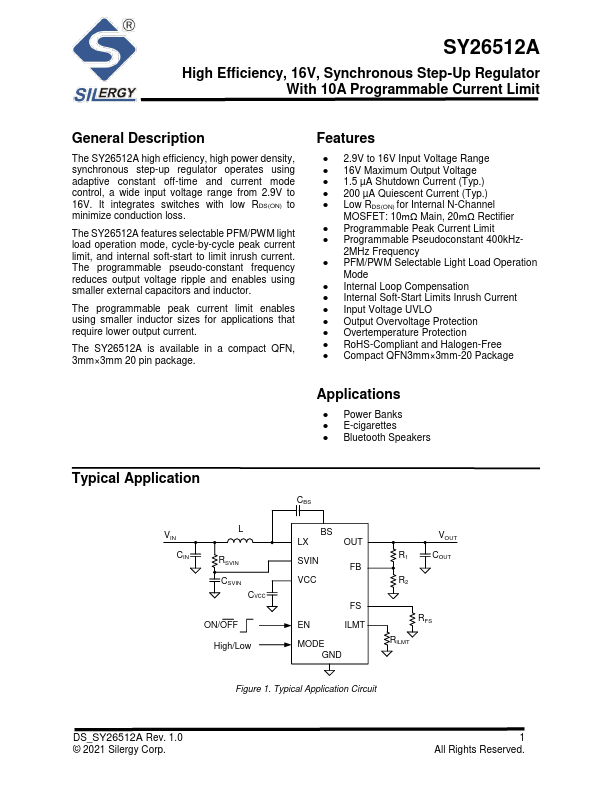

Silergy SY26512A
The SY26512A high efficiency, high power density, synchronous step-up regulator operates using adaptive constant off-time and current mode control, a wide input voltage range from 2.9V to 16V. It integrates switches with low RDS(ON) to minimize conduction loss. The SY26512A features selectable PFM/PWM light load operation mode, cycle-by-cycle peak current limit, and internal soft-start to limit inrush current.| Part No. | SY26512A |
|---|---|
| Datasheet | SY26512A Download |
| Manufacturer |  Silergy |
| Description | Synchronous Step-Up Regulator |
| Buy | Stock & Price |
GENERAL DESCRIPTION
The programmable pseudo-constant frequency reduces output voltage ripple and enables using smaller external capacitors and inductor. The programmable peak current limit enables using smaller inductor sizes for applications that require lower output current. The SY26512A is available in a compact QFN, 3mm×3mm 20 pin package.FEATURES
● 2.9V to 16V Input Voltage Range● 16V Maximum Output Voltage
● 1.5 µA Shutdown Current (Typ.)
● 200 µA Quiescent Current (Typ.)
● Low RDS(ON) for Internal N-Channel MOSFET: 10mΩ Main, 20mΩ Rectifier
● Programmable Peak Current Limit
● Programmable Pseudoconstant 400kHz- 2MHz Frequency
● PFM/PWM Selectable Light Load Operation Mode
● Internal Loop Compensation
● Internal Soft-Start Limits Inrush Current
● Input Voltage UVLO
● Output Overvoltage Protection
● Overtemperature Protection
● RoHS-Compliant and Halogen-Free
● Compact QFN3mm×3mm-20 Package
APPLICATIONS
● Power Banks● E-cigarettes
● Bluetooth Speakers Typical Application VIN CIN L RSVIN CSVIN CVCC ON/OFF High/Low CBS BS LX OUT SVIN FB VCC FS EN ILMT MODE GND VOUT R1 COUT R2 RFS RILMT Figure 1.
