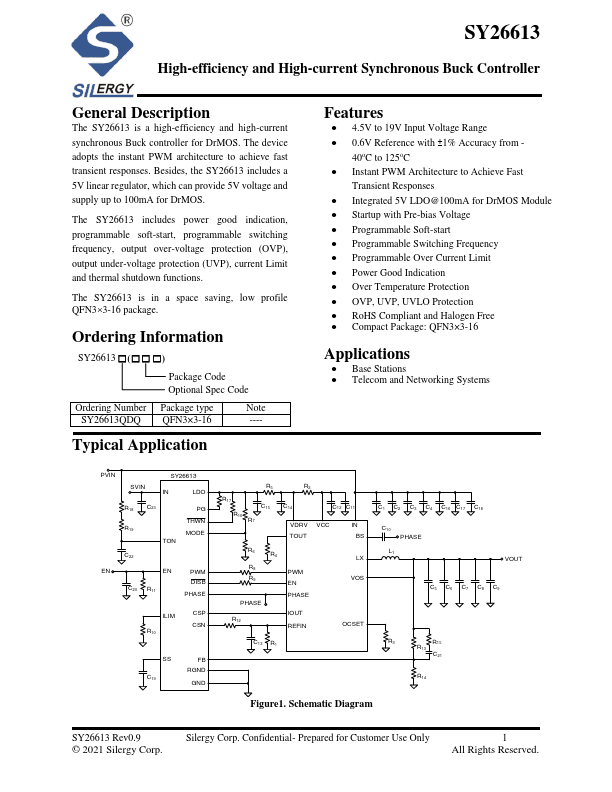

High-efficiency and High-current Synchronous Buck Controller General Description The SY26613 is a high-efficiency and high-current synchronous Buck controller for DrMOS. The device adopts the instant PWM architecture to achieve fast transient responses. Besides, the SY26613 includes a 5V linear regulator, which can provide 5V voltage and supply up to 100mA for DrMOS. The SY26613 includes power good indication, programmable soft-start, programmable switching frequency, output over-voltage protection (OVP), output under-voltage protection (UVP), current Limit and thermal shutdown functions. The SY26613 is in a space saving, low profile QFN33-16 package. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number Package type Note SY26613QDQ QFN3×3-16 ---- Typical Application Features - 4.5V to 19V Input Voltage Range - 0.6V Reference with ±1% Accuracy from - 40oC to 125oC - Instant PWM Architecture to Achieve Fast Transient Responses - Integrated 5V LDO@100mA for DrMOS Module - Startup with Pre-bias Voltage - Programmable Soft-start - Programmable Switching Frequency - Programmable Over Current Limit - Power Good Indication - Over Temperature Protection - OVP, UVP, UVLO Protection - RoHS pliant and Halogen Free - pact Package:...
