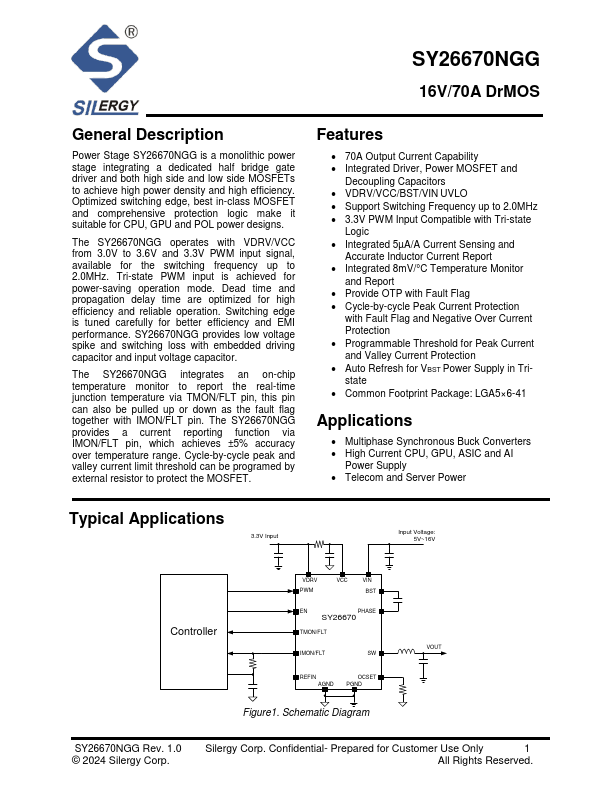

SY26670NGG
Description
Power Stage SY26670NGG is a monolithic power stage integrating a dedicated half bridge gate driver and both high side and low side MOSFETs to achieve high power density and high efficiency.
Key Features
- 70A Output Current Capability
- Integrated Driver, Power MOSFET and
- VDRV/VCC/BST/VIN UVLO
- Support Switching Frequency up to 2.0MHz
- Integrated 5µA/A Current Sensing and
- Integrated 8mV/°C Temperature Monitor
- Provide OTP with Fault Flag
- Cycle-by-cycle Peak Current Protection
- Programmable Threshold for Peak Current and Valley Current Protection
- Auto Refresh for VBST Power Supply in Tristate
Applications
- Multiphase Synchronous Buck Converters
