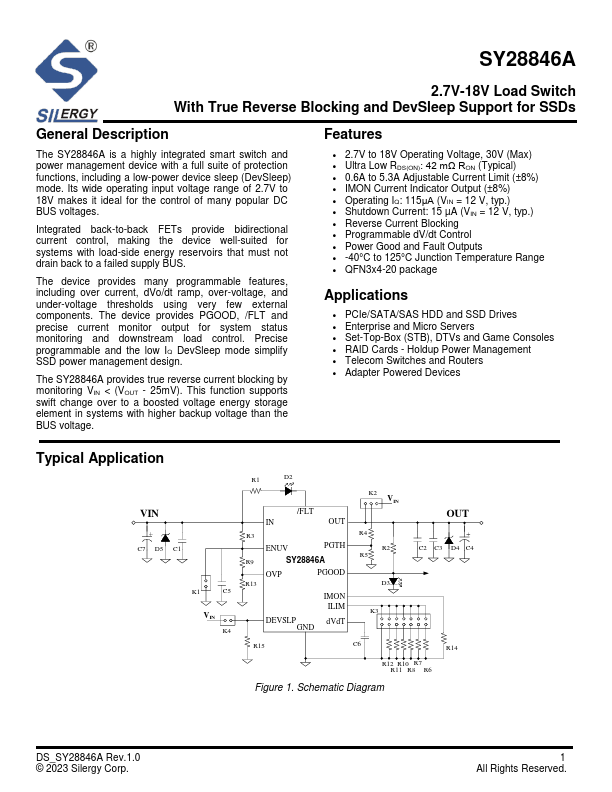

SY28846A
Description
The SY28846A is a highly integrated smart switch and power management device with a full suite of protection functions, including a low-power device sleep (DevSleep) mode.
Key Features
- 2.7V to 18V Operating Voltage, 30V (Max)
- Ultra Low RDS(ON): 42 mΩ RON (Typical)
- 0.6A to 5.3A Adjustable Current Limit (±8%)
- IMON Current Indicator Output (±8%)
- Operating IQ: 115μA (VIN = 12 V, typ.)
- Shutdown Current: 15 µA (VIN = 12 V, typ.)
- Reverse Current Blocking
- Programmable dV/dt Control
- Power Good and Fault Outputs
- 40°C to 125°C Junction Temperature Range
Applications
- PCIe/SATA/SAS HDD and SSD Drives
