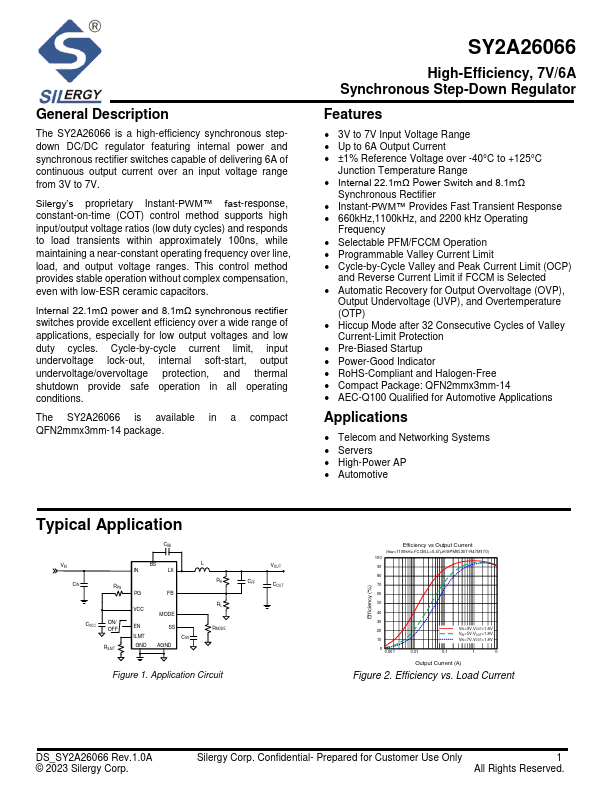

SY2A26066 Datasheet Summary
General Description
The SY2A26066 is a high-efficiency synchronous stepdown DC/DC regulator featuring internal power and synchronous rectifier switches capable of delivering 6A of continuous output current over an input voltage range from 3V to 7V.
Silergy’s proprietary Instant-PWM™ fast-response, constant-on-time (COT) control method supports high input/output voltage ratios (low duty cycles) and responds to load transients within approximately 100ns, while maintaining a near-constant operating frequency over line, load, and output voltage ranges. This control method provides stable operation without plex pensation, even with low-ESR ceramic capacitors.
Internal 22.1mΩ power and 8.1mΩ synchronous rectifier switches provide excellent efficiency over a wide range of applications, especially for low output voltages and low duty cycles. Cycle-by-cycle current limit, input undervoltage lock-out, internal soft-start, output undervoltage/overvoltage protection, and thermal shutdown provide safe operation in all operating conditions.
The SY2A26066 is available in a pact QFN2mmx3mm-14 package.
High-Efficiency, 7V/6A Synchronous Step-Down Regulator
Features
- 3V to 7V Input Voltage Range
- Up to 6A Output Current
- ±1% Reference Voltage over -40°C to +125°C
Junction Temperature Range
- Internal 22.1mΩ Power Switch and 8.1mΩ
Synchronous Rectifier
- Instant-PWM™ Provides Fast Transient Response
- 660kHz,1100kHz, and 2200 kHz Operating
Frequency
- Selectable PFM/FCCM Operation
- Programmable Valley Current Limit
- Cycle-by-Cycle Valley and Peak Current Limit (OCP) and Reverse Current Limit if FCCM is Selected
- Automatic Recovery for Output Overvoltage (OVP),
Output Undervoltage (UVP), and Overtemperature (OTP)
- Hiccup Mode after 32 Consecutive Cycles of...
