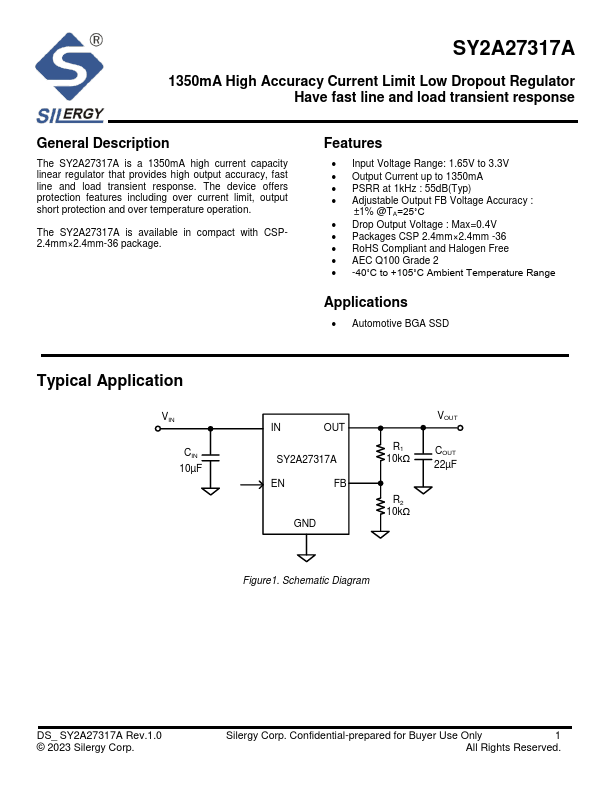

SY2A27317A
Description
The SY2A27317A is a 1350m A high current capacity linear regulator that provides high output accuracy, fast line and load transient response. The device offers protection features including over current limit, output short protection and over temperature operation.
The SY2A27317A is available in pact with CSP2.4mm×2.4mm-36 package.
Features
- Input Voltage Range: 1.65V to 3.3V
- Output Current up to 1350m A
- PSRR at 1k Hz : 55d B(Typ)
- Adjustable Output FB Voltage Accuracy :
±1% @TA=25˚C
- Drop Output Voltage : Max=0.4V
- Packages CSP 2.4mm×2.4mm -36
- Ro HS pliant and Halogen Free
- AEC Q100 Grade 2
- -40˚C to +105˚C Ambient Temperature Range
Applications
- Automotive BGA SSD
Typical Application
CIN 10µF
R1 10kΩ
VOUT
COUT 22µF
R2 10kΩ
Figure1. Schematic Diagram
DS_ SY2A27317A Rev.1.0 © 2023 Silergy Corp.
Silergy Corp. Confidential-prepared for Buyer Use Only
All Rights Reserved.

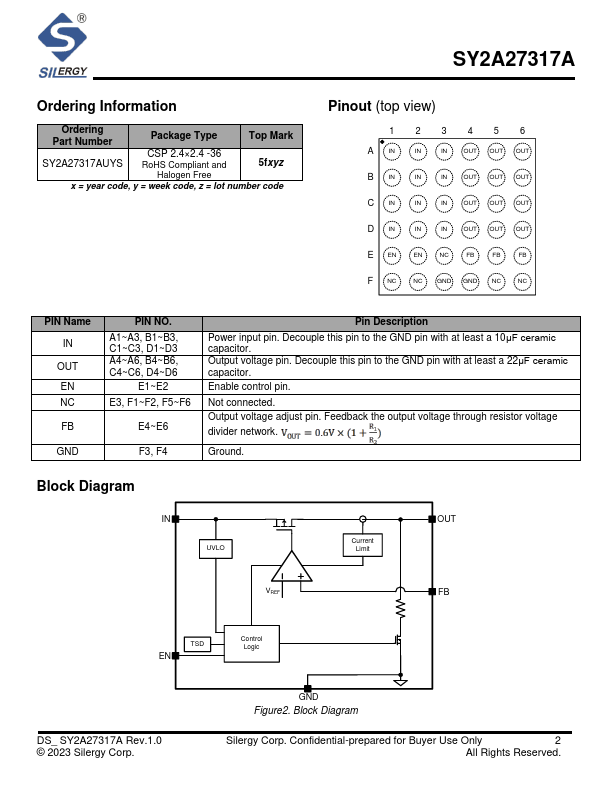

Ordering Information
