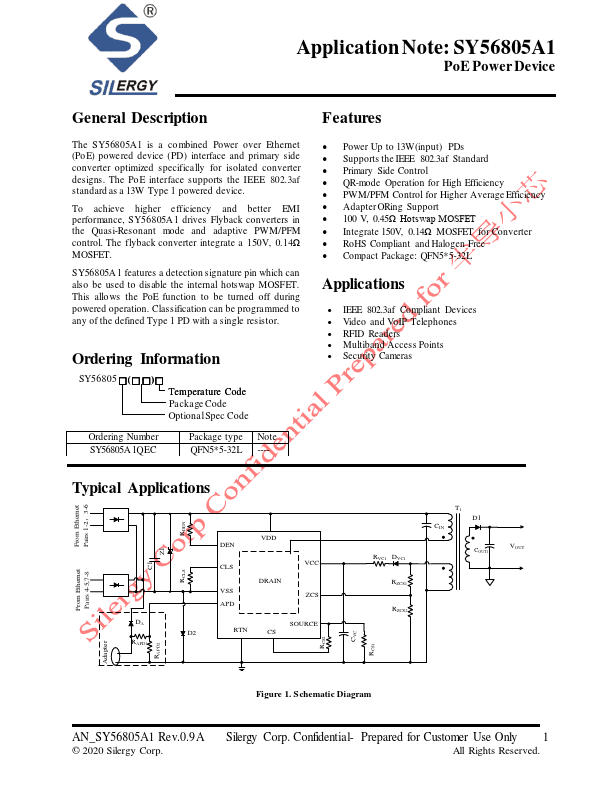

SY56805A1 Overview
The SY56805A1 is a co mbined Power over Ethernet (Po E) powered device (PD) interface and primary side converter optimized specifically for isolated converter designs. The Po E interface supports the IEEE 802.3af standard as a 13W Type 1 powered device. To achieve higher efficiency and better EMI performance, SY56805A 1 drives Flyback converters in the Quasi-Resonant mode and adaptive PWM/PFM control.
SY56805A1 Key Features
- Power Up to 13W(input) PDs
- Supports the IEEE 802.3af Standard
- Primary Side Control
- QR-mode Operation for High Efficiency
- PWM/PFM Control for Higher Average Efficiency
- Adapter ORing Support
- 100 V, 0.45Ω Hotswap MOSFET
- Integrate 150V, 0.14Ω MOSFET for Converter
- RoHS pliant and Halogen Free

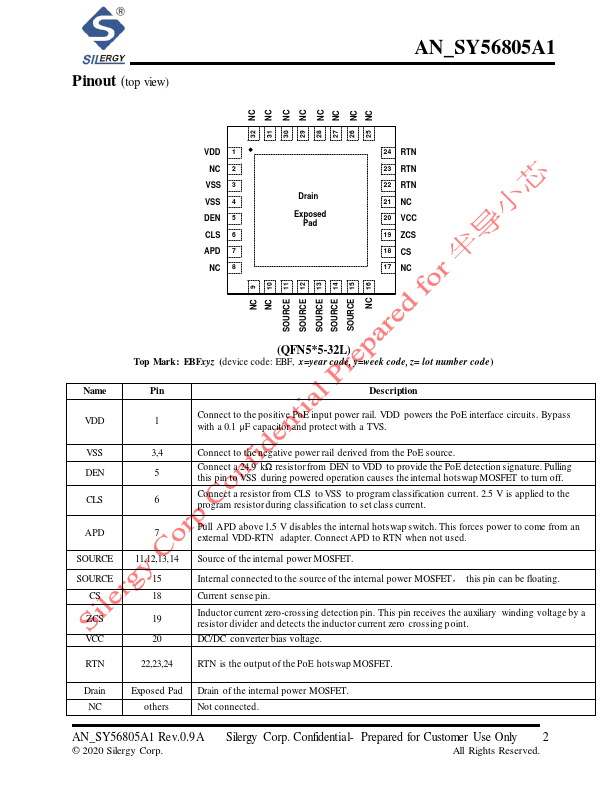

- pact Package: QFN5-5-32L
