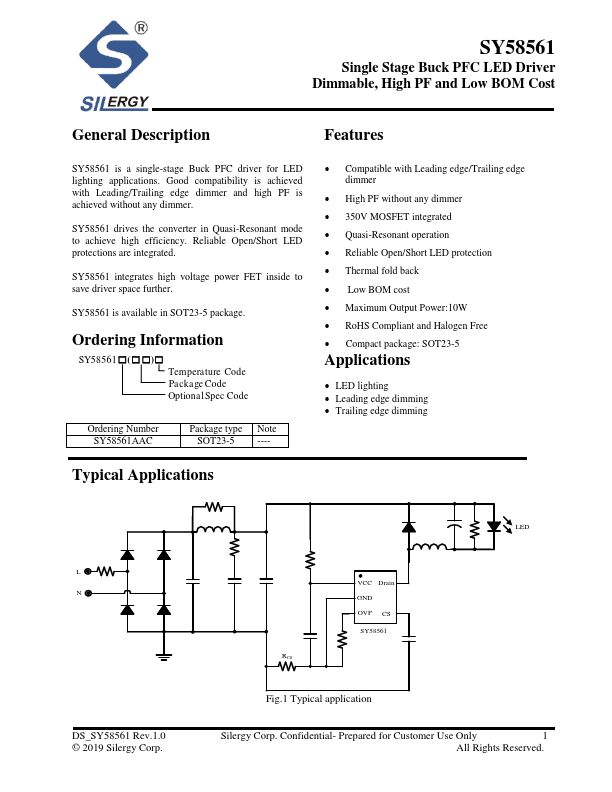

Silergy SY58561
SY58561 is a single-stage Buck PFC driver for LED lighting applications. SY58561 is available in SOT23-5 package.| Part No. | SY58561 |
|---|---|
| Datasheet | SY58561 Download |
| Manufacturer |  Silergy |
| Description | Single Stage Buck PFC LED Driver |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
Good compatibility is achieved with Leading/Trailing edge dimmer and high PF is achieved without any dimmer. SY58561 drives the converter in Quasi-Resonant mode to achieve high efficiency. Reliable Open/Short LED protections are integrated. SY58561 integrates high voltage power FET inside to save driver space further. SY58561 is available in SOT23-5 package. Ordering Information SY58561 □(□ □)□ Temperature Code Pa cka ge Code Optional Spec Code Ordering Number SY58561AAC Package type Note SOT23-5 ----● Compatible with Leading edge/Trailing edge dimmer
● High PF without any dimmer
● 350V MOSFET integrated
● Quasi-Resonant operation
● Reliable Open/Short LED protection
● Thermal fold back
● Low BOM cost
● Maximum Output Power:10W
● RoHS Compliant and Halogen Free
● Compact package: SOT23-5
APPLICATIONS
● LED lighting● Leading edge dimming
● Trailing edge dimming Typical
APPLICATIONS
L N DS_SY58561 Rev.1.0 © 2019 Silergy Corp. LED VCC Drain GND OVP CS SY58561 RCS Fig.1 Typical application Silergy Corp.
