SY6340 Datasheet | Silergy

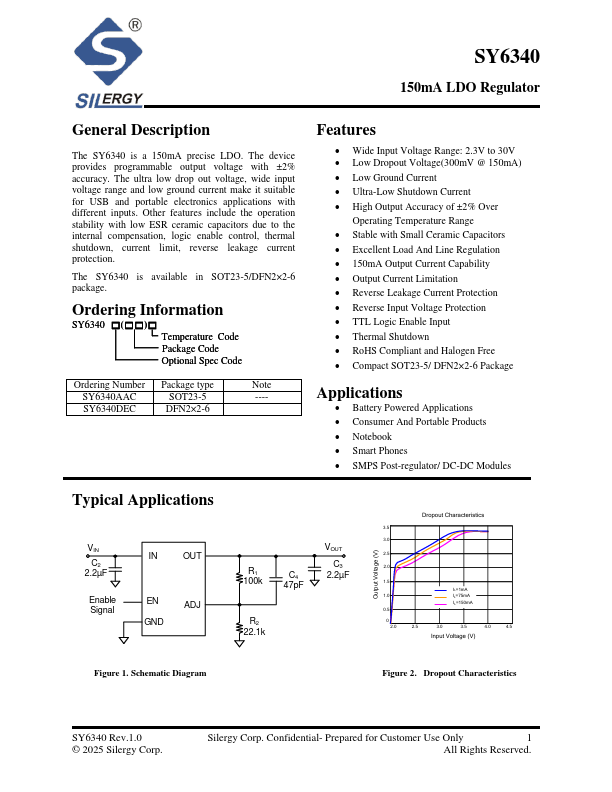

150m A LDO Regulator General Description The SY6340 is a 150m A precise LDO. The device provides programmable output voltage with ±2% accuracy. The ultra low drop out voltage, wide input voltage range and low ground current make it suitable for USB and portable electronics applications with different inputs. Other Features include the operation stability with low ESR ceramic capacitors due to the internal pensation, logic enable control, thermal shutdown, current limit, reverse leakage current protection. The SY6340 is available in SOT23-5/DFN2×2-6 package. Ordering Information - (- - )- Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY6340AAC SOT23-5 ---- SY6340DEC DFN2×2-6 Features - Wide Input Voltage Range: 2.3V to 30V - Low Dropout Voltage(300m V @ 150m A) - Low Ground Current - Ultra-Low Shutdown Current - High Output Accuracy of ±2% Over Operating Temperature Range - Stable with Small Ceramic Capacitors - Excellent Load And Line Regulation - 150m A Output Current Capability - Output Current Limitation - Reverse Leakage Current Protection - Reverse Input Voltage Protection - TTL Logic Enable Input - Thermal Shutdown - Ro HS pliant and Halogen...
