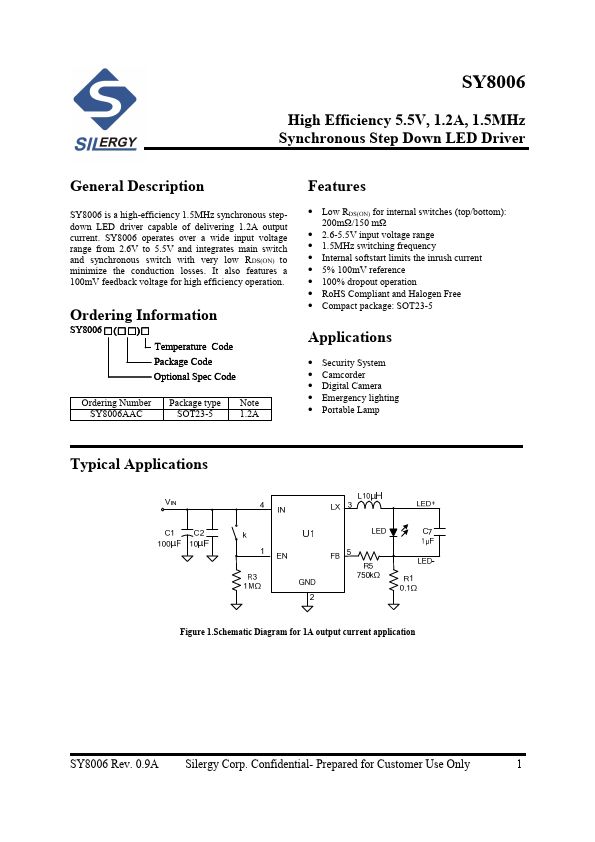

High Efficiency 5.5V, 1.2A, 1.5MHz Synchronous Step Down LED Driver General Description SY8006 is a high-efficiency 1.5MHz synchronous stepdown LED driver capable of delivering 1.2A output current. SY8006 operates over a wide input voltage range from 2.6V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction losses. It also Features a 100m V feedback voltage for high efficiency operation. Ordering Information - (- - )- Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY8006AAC SOT23-5 1.2A Features - Low RDS(ON) for internal switches (top/bottom): 200mΩ/150 mΩ - 2.6-5.5V input voltage range - 1.5MHz switching frequency - Internal softstart limits the inrush current - 5% 100m V reference - 100% dropout operation - Ro HS pliant and Halogen Free - pact package: SOT23-5 Applications - Security System - Camcorder - Digital Camera - Emergency lighting - Portable Lamp Typical Applications Figure 1.Schematic Diagram for 1A output current application SY8006 Rev. 0.9A Silergy Corp. Confidential- Prepared for Customer Use Only Pinout (top...
