SY8205 - Synchronous Step Down Regulator

Datasheet Summary

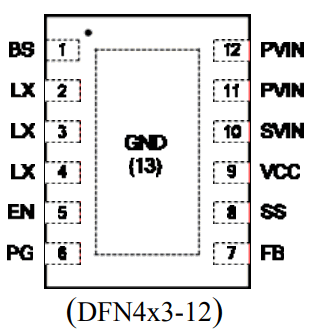

Description

SY8205 develops a high efficiency synchronous stepdown DC-DC converter capable of delivering 5A output current.

switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Features

Low RDS(ON) for internal switches (top/bottom): 70/40 mΩ.
4.5-30V input voltage range.
Instant PWM architecture to achieve fast transient responses.
External softstart limits the inrush current.
Pseudo-constant frequency: 500kHz at heavy loads.
5A continuous, 6A peak load current capability.
1.5% 0.6V reference.
Output over current limit.
Output short circuit protection with current fold back.
Thermal shut.

Datasheet Details

Part number	SY8205
Manufacturer	Silergy
File Size	801.64 KB
Description	Synchronous Step Down Regulator
Datasheet	SY8205 Datasheet
Additional preview pages of the SY8205 datasheet.

📁 Similar Datasheet

SY8205 - N-Channel MOSFET (SANY)

SY8201CABC - 30V 1A 1.4MHz Synchronous Step-Down Regulator (SUNGOOD)

SY826 - Special chips for e-cigarettes (AMICRO)

SY8022 - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)

SY8022L - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)

SY84113BU - Low Power 2.5V 1.25Gbps Limiting Post Amplifier (Micrel Semiconductor)

SY84402L - 4.25Gbps VCSEL Driver (Micrel Semiconductor)

SY84403BL - Ultra Small 3.3V 4.25Gbps CML Low-Power Limiting Post Amplifier (Micrel Semiconductor)

SY84782U - Low Power 2.5V 1.25Gbps FP/DFB Laser Diode Driver (Micrel Semiconductor)

SY8601 - Linear Li-Ion Battery Charger (TPS)

Full PDF Text Transcription

Click to expand full text

Application Notes: AN_SY8205 High Efficiency Fast Response，5A, 30V Input Synchronous Step Down Regulator Preliminary Specification General Description SY8205 develops a high efficiency synchronous stepdown DC-DC converter capable of delivering 5A output current. SY8205 operates over a wide input voltage range from 4.5V to 30V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. SY8205 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500kHz under continous conduction mode to minimize the size of inductor and capacitor.
