SY8253 Datasheet | Silergy

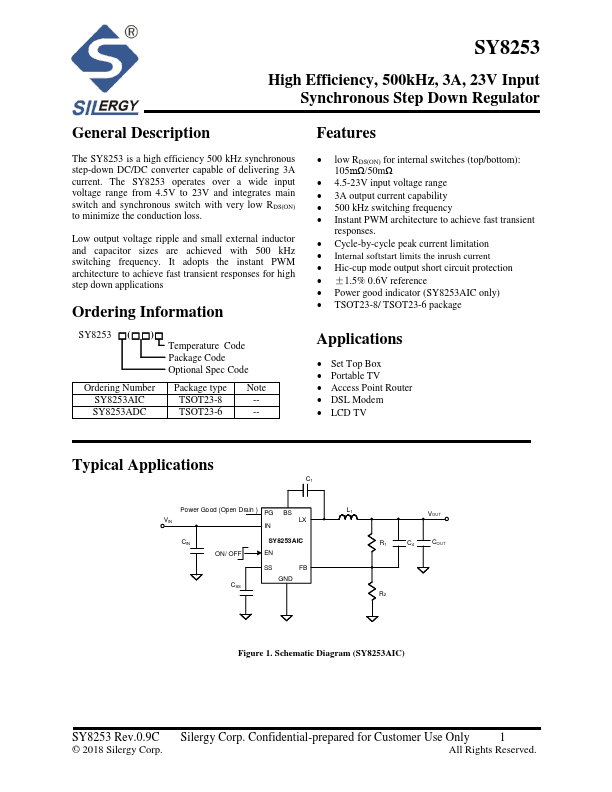

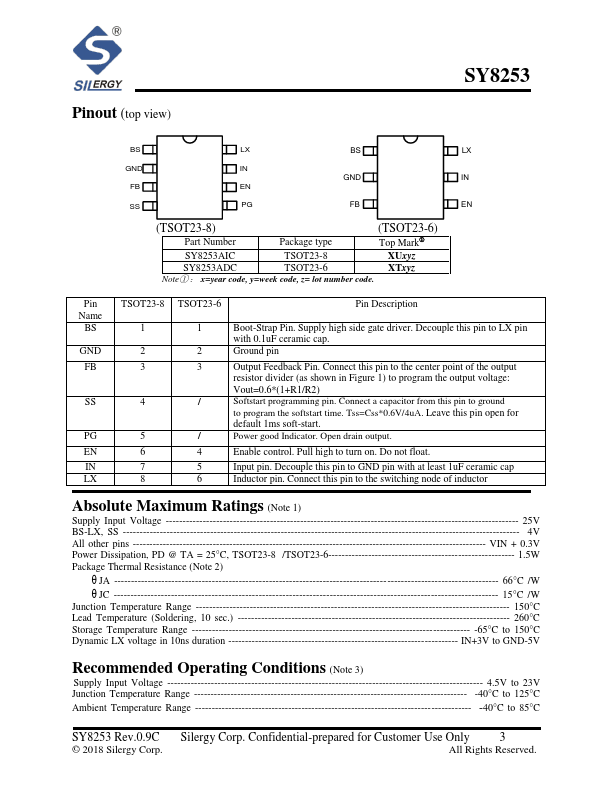

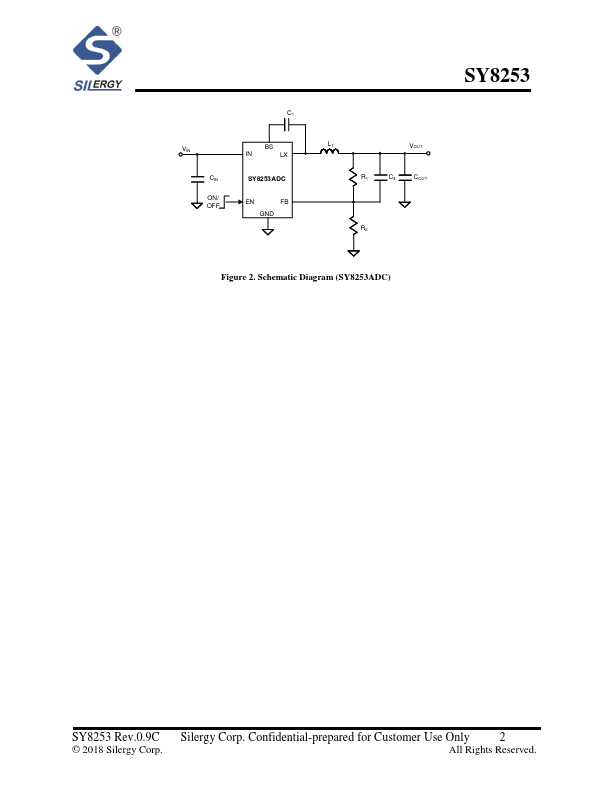

High Efficiency, 500k Hz, 3A, 23V Input Synchronous Step Down Regulator General Description The SY8253 is a high efficiency 500 k Hz synchronous step-down DC/DC converter capable of delivering 3A current. The SY8253 operates over a wide input voltage range from 4.5V to 23V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 500 k Hz switching frequency. It adopts the instant PWM architecture to achieve fast transient responses for high step down applications Ordering Information - (- - )- Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SY8253AIC TSOT23-8 -- SY8253ADC TSOT23-6 -- Features - low RDS(ON) for internal switches (top/bottom): 105mΩ/50mΩ - 4.5-23V input voltage range - 3A output current capability - 500 k Hz switching frequency - Instant PWM architecture to achieve fast transient responses. - Cycle-by-cycle peak current limitation - Internal softstart limits the inrush current - Hic-cup mode output short circuit protection - ±1.5% 0.6V reference - Power good indicator (SY8253AIC only) - TSOT23-8/ TSOT23-6 package Applications - Set Top Box - Portable TV - Access Point...
