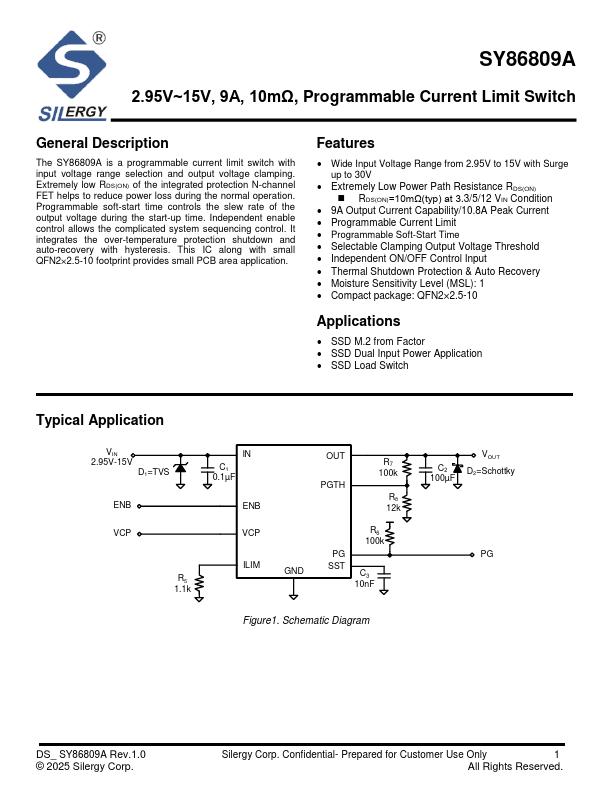

SY86809A
Description
The SY86809A is a programmable current limit switch with input voltage range selection and output voltage clamping.
Key Features
- Wide Input Voltage Range from 2.95V to 15V with Surge up to 30V
- Extremely Low Power Path Resistance RDS(ON)
- RDS(ON)=10mΩ(typ) at 3.3/5/12 VIN Condition
- 9A Output Current Capability/10.8A Peak Current
- Programmable Current Limit
- Programmable Soft-Start Time
- Selectable Clamping Output Voltage Threshold
- Independent ON/OFF Control Input
- Thermal Shutdown Protection & Auto Recovery
- Moisture Sensitivity Level (MSL): 1
Applications
- SSD M.2 from Factor
