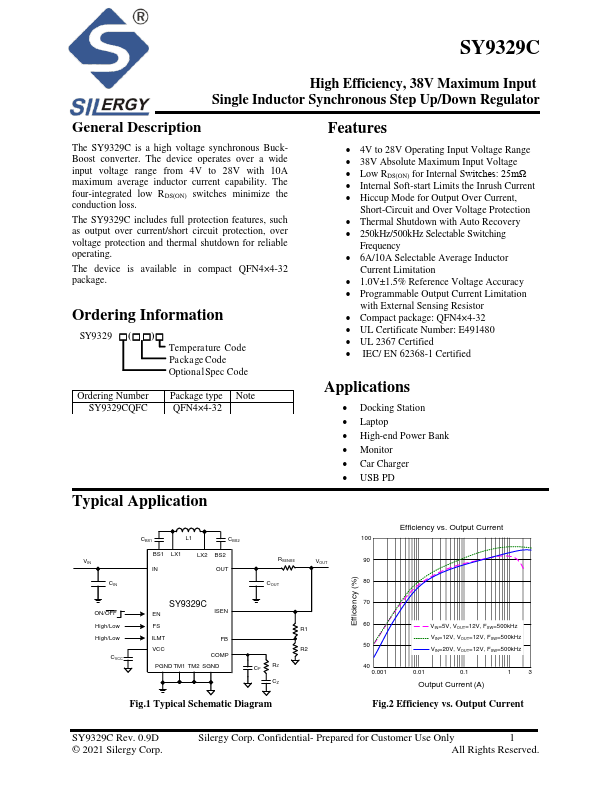

High Efficiency, 38V Maximum Input Single Inductor Synchronous Step Up/Down Regulator General Description The SY9329C is a high voltage synchronous Buck Boost converter. The device operates over a wide input voltage range from 4V to 28V with 10A maximum average inductor current capability. The four-integrated low RDS(ON) switches minimize the conduction loss. The SY9329C includes full protection Features , such as output over current/short circuit protection, over voltage protection and thermal shutdown for reliable operating. The device is available in pact QFN4×4-32 package. Ordering Information SY9329 - (- - )- Temperature Code Pa cka ge Code Optional Spec Code Ordering Number SY9329CQFC Package type Note QFN4×4-32 Typical Application Features - 4V to 28V Operating Input Voltage Range - 38V Absolute Maximum Input Voltage - Low RDS(ON) for Internal Switches: 25mΩ - Internal Soft-start Limits the Inrush Current - Hiccup Mode for Output Over Current, Short-Circuit and Over Voltage Protection - Thermal Shutdown with Auto Recovery - 250k Hz/500k Hz Selectable Switching Frequency - 6A/10A Selectable Average Inductor Current Limitation - 1.0V±1.5% Reference Voltage Accuracy - Programmable Output Current Limitation with External Sensing Resistor - pact package: QFN4×4-32 - UL Certificate Number: E491480 - UL 2367...
