SiLM27523N Datasheet Dual-channel High-speed Low-side Gate Driver

Manufacturer: Sillumin

Overview: SiLM27523N Dual-Channel, High-Speed, Low-Side Gate Driver GENERAL.

Datasheet Details

Part number SiLM27523N
Manufacturer Sillumin
File Size 382.30 KB
Description Dual-Channel High-Speed Low-Side Gate Driver
Datasheet SiLM27523N-Sillumin.pdf

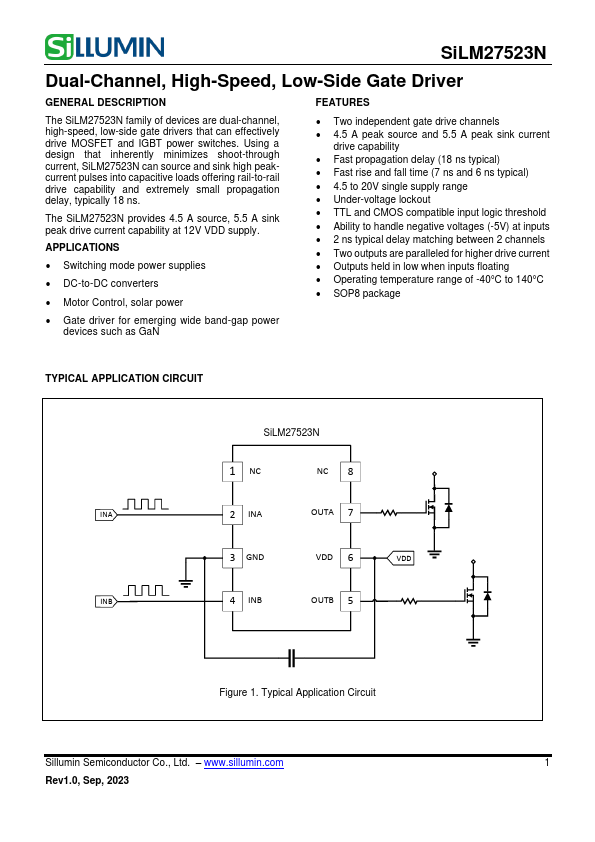

General Description

The SiLM27523N family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches.

Using a design that inherently minimizes shoot-through current, SiLM27523N can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns.

The SiLM27523N provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply.

Key Features

  • Two independent gate drive channels.
  • 4.5 A peak source and 5.5 A peak sink current drive capability.
  • Fast propagation delay (18 ns typical).
  • Fast rise and fall time (7 ns and 6 ns typical).
  • 4.5 to 20V single supply range.
  • Under-voltage lockout.
  • TTL and CMOS compatible input logic threshold.
  • Ability to handle negative voltages (-5V) at inputs.
  • 2 ns typical delay matching between 2 channels.
  • Two outputs are.
