SiLM27531H-AQ Datasheet Single-channel High-speed Low-side Gate Driver

Manufacturer: Sillumin

Overview: SiLM27531H-AQ Single-Channel, High-Speed, Low-Side Gate Driver.

Datasheet Details

Part number SiLM27531H-AQ
Manufacturer Sillumin
File Size 544.00 KB
Description Single-Channel High-Speed Low-Side Gate Driver
Datasheet SiLM27531H-AQ-Sillumin.pdf

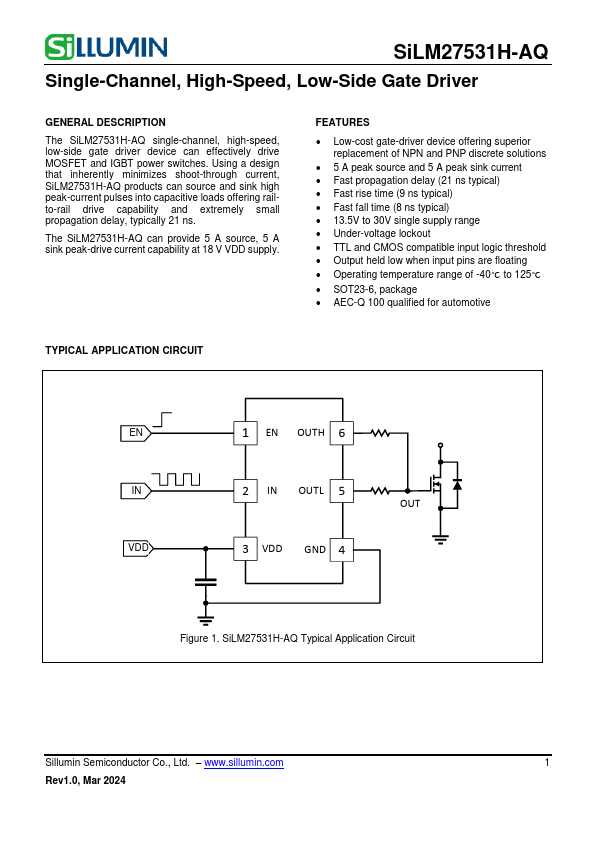

General Description

The SiLM27531H-AQ single-channel, high-speed, low-side gate driver device can effectively drive MOSFET and IGBT power switches.

Using a design that inherently minimizes shoot-through current, SiLM27531H-AQ products can source and sink high peak-current pulses into capacitive loads offering railto-rail drive capability and extremely small propagation delay, typically 21 ns.

The SiLM27531H-AQ can provide 5 A source, 5 A sink peak-drive current capability at 18 V VDD supply.

Key Features

  • Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions.
  • 5 A peak source and 5 A peak sink current.
  • Fast propagation delay (21 ns typical).
  • Fast rise time (9 ns typical).
  • Fast fall time (8 ns typical).
  • 13.5V to 30V single supply range.
  • Under-voltage lockout.
  • TTL and CMOS compatible input logic threshold.
  • Output held low when input pins are floating.
  • Operating temperature range of -40℃ to 125℃.
  • SOT23-6, pa.
