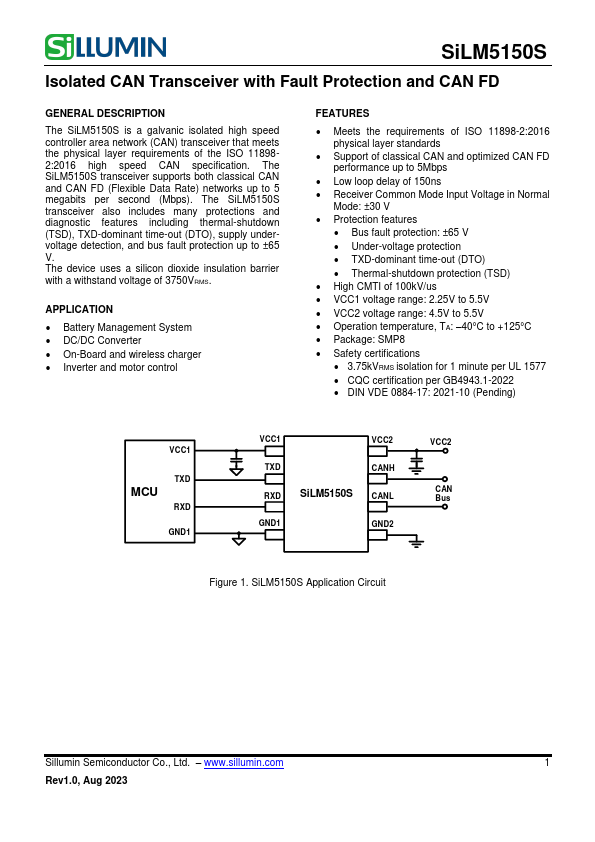

DESCRIPTION The Si LM5150S is a galvanic isolated high speed controller area network (CAN) transceiver that meets the physical layer requirements of the ISO 118982:2016 high speed CAN specification. The Si LM5150S transceiver supports both classical CAN and CAN FD (Flexible Data Rate) networks up to 5 megabits per second (Mbps). The Si LM5150S transceiver also includes many protections and diagnostic features including thermal-shutdown (TSD), TXD-dominant time-out (DTO), supply undervoltage detection, and bus fault protection up to ±65 V. The device uses a silicon dioxide insulation barrier with a withstand voltage of 3750VRMS. APPLICATION - Battery Management System - DC/DC Converter - On-Board and wireless charger - Inverter and motor control FEATURES - Meets the requirements of ISO 11898-2:2016 physical layer standards - Support of classical CAN and optimized CAN FD performance up to 5Mbps - Low loop delay of 150ns - Receiver mon Mode Input Voltage in Normal Mode: ±30 V - Protection features - Bus fault protection: ±65 V - Under-voltage protection - TXD-dominant time-out (DTO) - Thermal-shutdown protection (TSD) - High CMTI of 100k V/us - VCC1 voltage range: 2.25V to 5.5V - VCC2 voltage range: 4.5V to 5.5V - Operation temperature, TA: - 40°C to +125°C - Package: SMP8 - Safety certifications - 3.75k VRMS isolation for 1 minute per UL 1577 - CQC certification per GB4943.1-2022 - DIN VDE 0884-17: 2021-10 (Pending) VCC1 GND1 VCC1 VCC2 CANH RXD Si LM5150S...
