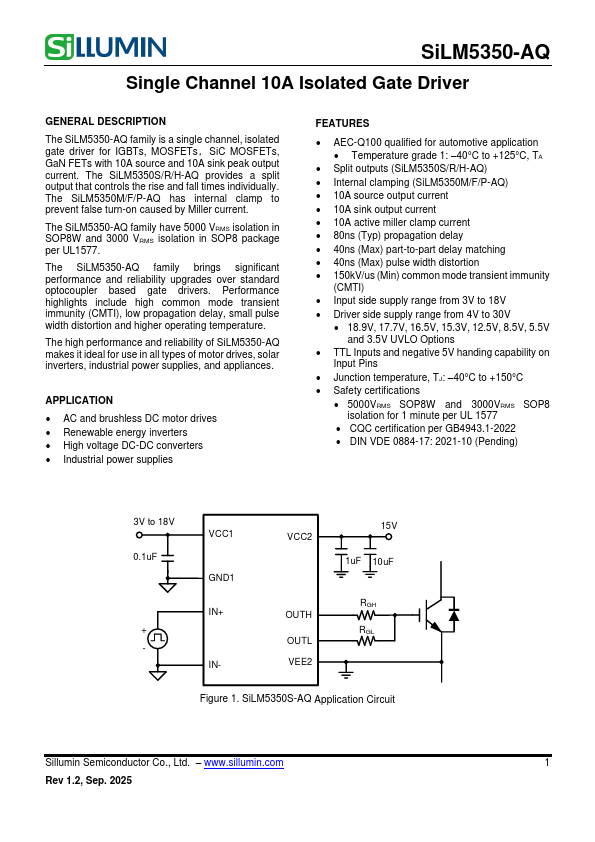

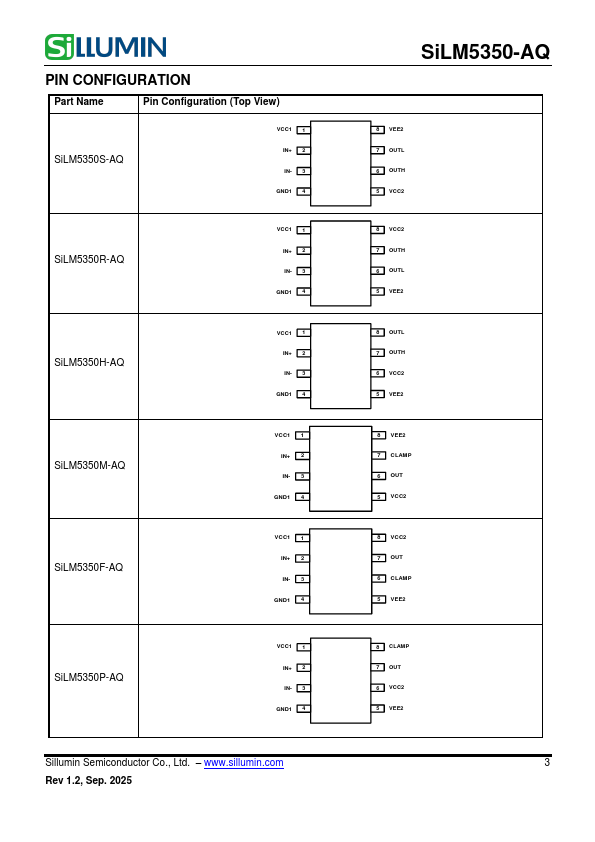

DESCRIPTION The Si LM5350-AQ family is a single channel, isolated gate driver for IGBTs, MOSFETs，Si C MOSFETs, Ga N FETs with 10A source and 10A sink peak output current. The Si LM5350S/R/H-AQ provides a split output that controls the rise and fall times individually. The Si LM5350M/F/P-AQ has internal clamp to prevent false turn-on caused by Miller current. The Si LM5350-AQ family have 5000 VRMS isolation in SOP8W and 3000 VRMS isolation in SOP8 package per UL1577. The Si LM5350-AQ family brings significant performance and reliability upgrades over standard optocoupler based gate drivers. Performance highlights include high mon mode transient immunity (CMTI), low propagation delay, small pulse width distortion and higher operating temperature. The high performance and reliability of Si LM5350-AQ makes it ideal for use in all types of motor drives, solar inverters, industrial power supplies, and appliances. APPLICATION - AC and brushless DC motor drives - Renewable energy inverters - High voltage DC-DC converters - Industrial power supplies FEATURES - AEC-Q100 qualified for automotive application - Temperature grade 1: - 40°C to +125°C, TA - Split outputs (Si LM5350S/R/H-AQ) - Internal clamping (Si LM5350M/F/P-AQ) - 10A source output current - 10A sink output current - 10A active miller clamp current - 80ns (Typ) propagation delay - 40ns (Max) part-to-part delay matching - 40ns (Max) pulse width distortion - 150k V/us (Min) mon mode transient immunity (CMTI) - Input side supply range from 3V to 18V - Driver side supply range from 4V to 30V - 18.9V, 17.7V, 16.5V, 15.3V, 12.5V, 8.5V, 5.5V and 3.5V UVLO Options - TTL Inputs and negative 5V handing capability on Input Pins - Junction temperature, TJ: - 40°C to +150°C - Safety certifications - 5000VRMS SOP8W and 3000VRMS SOP8 isolation for 1 minute per UL 1577 - CQC certification per GB4943.1-2022 - DIN VDE 0884-17: 2021-10 (Pending) 3V to 18V 0.1u F + - VCC1 GND1 IN+ IN- VCC2 15V 1u F 10u...
