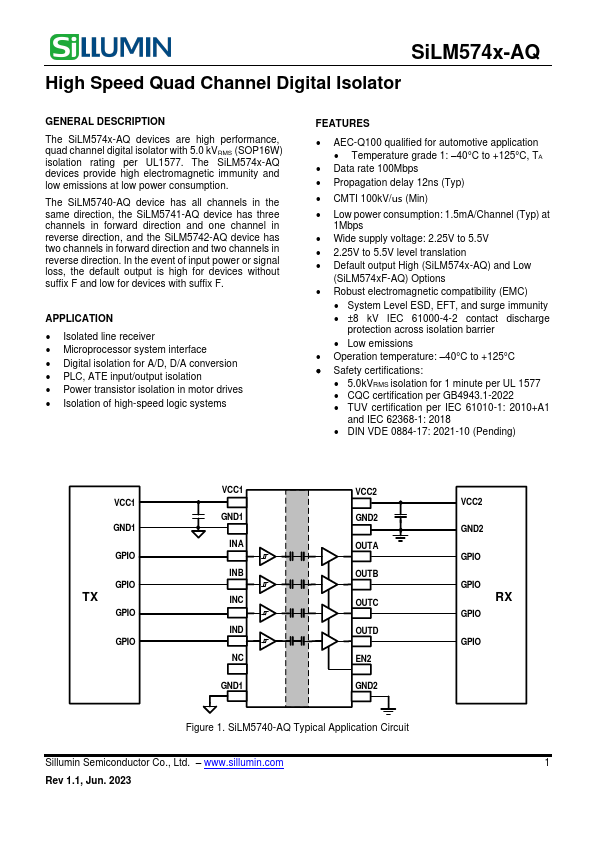

SiLM5742-AQ Description
The SiLM574x-AQ devices are high performance, quad channel digital isolator with 5.0 kVRMS (SOP16W) isolation rating per UL1577. The SiLM574x-AQ devices provide high electromagnetic immunity and low emissions at low power consumption. The SiLM5740-AQ device has all channels in the same direction, the SiLM5741-AQ device has three channels in forward direction and one channel in reverse direction, and the SiLM5742-AQ...
SiLM5742-AQ Key Features
- AEC-Q100 qualified for automotive application
- Temperature grade 1: -40°C to +125°C, TA
- Data rate 100Mbps
- Propagation delay 12ns (Typ)
- CMTI 100kV/us (Min)
- Low power consumption: 1.5mA/Channel (Typ) at 1Mbps
- Wide supply voltage: 2.25V to 5.5V
- 2.25V to 5.5V level translation
- Default output High (SiLM574x-AQ) and Low
- Robust electromagnetic patibility (EMC)
