SiLM5991SH-AQ - 12A Sink and Source Reinforced Isolated Single Channel Gate Driver

General Description

The SiLM5991SH-AQ is an advanced single channel isolated gate driver with active protection

📥 Download Datasheet

Datasheet Details

Part number SiLM5991SH-AQ
Manufacturer Sillumin
File Size 411.23 KB
Description 12A Sink and Source Reinforced Isolated Single Channel Gate Driver
Datasheet download datasheet SiLM5991SH-AQ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIL05-1A72-71D Single-In-Line Reed Relays MEDER
SIL05-1A72-71L Relays MEDER
SIL05-1A72-74L Relays MEDER
SIL05N06 N-CHANNEL MOSFET MCC
SIL05N06A N-Channel Power MOSFET MCC

Other Datasheets by Sillumin

Part Number Description
SiLM5991SH 12A Sink and Source Reinforced Isolated Single Channel Gate Driver
SiLM5992SH 12A Sink and Source Reinforced Isolated Single Channel Gate Driver
SiLM5932SHO 12A Sink and Source Reinforced Isolated Single Channel Gate Driver
SiLM5932SHO-AQ 12A Sink and Source Reinforced Isolated Single Channel Gate Driver
SiLM5150S Isolated CAN Transceiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

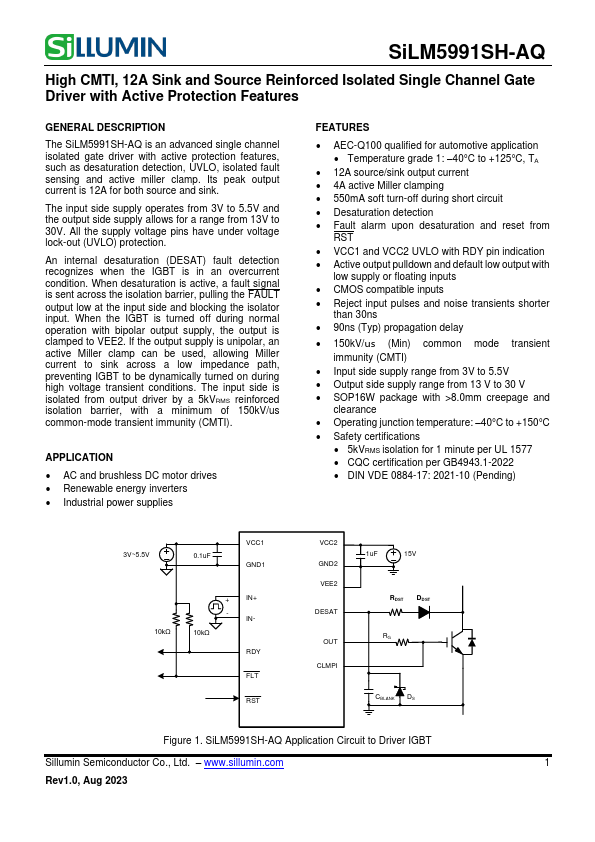

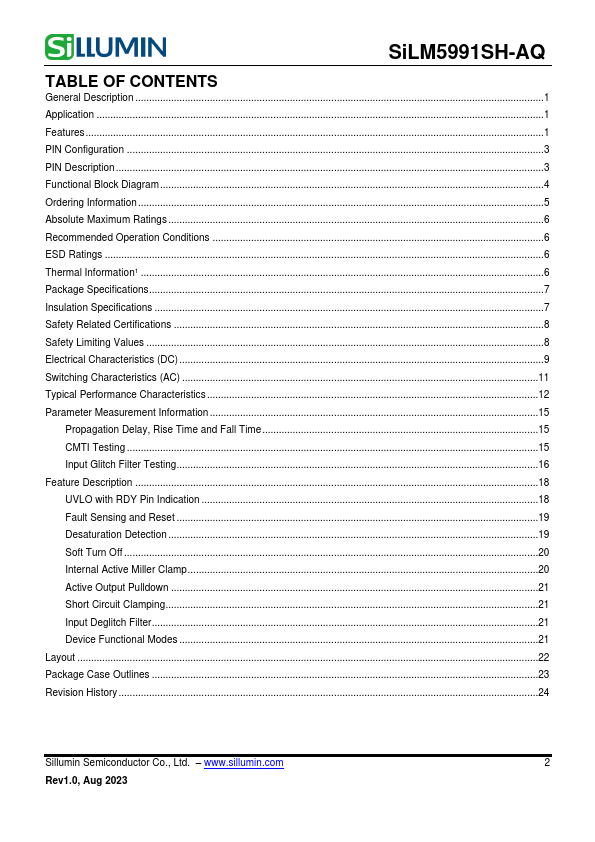

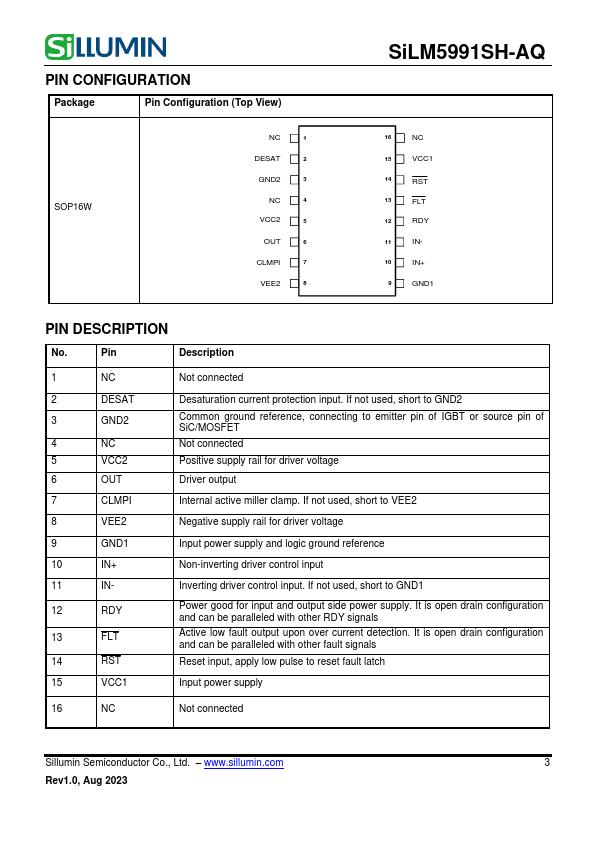

SiLM5991SH-AQ High CMTI, 12A Sink and Source Reinforced Isolated Single Channel Gate Driver with Active Protection Features GENERAL DESCRIPTION The SiLM5991SH-AQ is an advanced single channel isolated gate driver with active protection features, such as desaturation detection, UVLO, isolated fault sensing and active miller clamp. Its peak output current is 12A for both source and sink. The input side supply operates from 3V to 5.5V and the output side supply allows for a range from 13V to 30V. All the supply voltage pins have under voltage lock-out (UVLO) protection. An internal desaturation (DESAT) fault detection recognizes when the IGBT is in an overcurrent condition.
