SiLM6583 - High Efficiency 95V 0.5A Synchronous Step Down Regulator

Download the SiLM6583 datasheet PDF. This datasheet also covers the SiLM6582 variant, as both devices belong to the same high efficiency 95v 0.5a synchronous step down regulator family and are provided as variant models within a single manufacturer datasheet.

General Description

The SiLM6582/83 is a high efficiency synchronous step down regulator.

It can deliver 0.5 A continuous current.

Key Features

  • Wide input voltage range: 6V to 95V.
  • Output current capability: 0.5 A.
  • 1.2V reference voltage with ±1.5% accuracy over temperature.
  • Integrates low RDSON high side/ low side FET: 600mΩ/290 mΩ.
  • 20μA quiescent current and 15μA shutdown current.
  • Constant on time control for fast transient response.
  • Integrates soft start to limit inrush current.
  • Open drain power good output.
  • Programmable UVLO.
  • Peak and valley c.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SiLM6582-Sillumin.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SiLM6583
Manufacturer Sillumin
File Size 456.63 KB
Description High Efficiency 95V 0.5A Synchronous Step Down Regulator
Datasheet download datasheet SiLM6583 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIL05-1A72-71D Single-In-Line Reed Relays MEDER
SIL05-1A72-71L Relays MEDER
SIL05-1A72-74L Relays MEDER
SIL05N06 N-CHANNEL MOSFET MCC
SIL05N06A N-Channel Power MOSFET MCC

Other Datasheets by Sillumin

Part Number Description
SiLM6582 High Efficiency 95V 0.5A Synchronous Step Down Regulator
SiLM6000 PLC Receiver
SiLM6000S PLC Receiver
SiLM6120 High Performance MPP Tracking Buck Controller
SiLM6880 80V 1.0A Synchronous Step Down Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

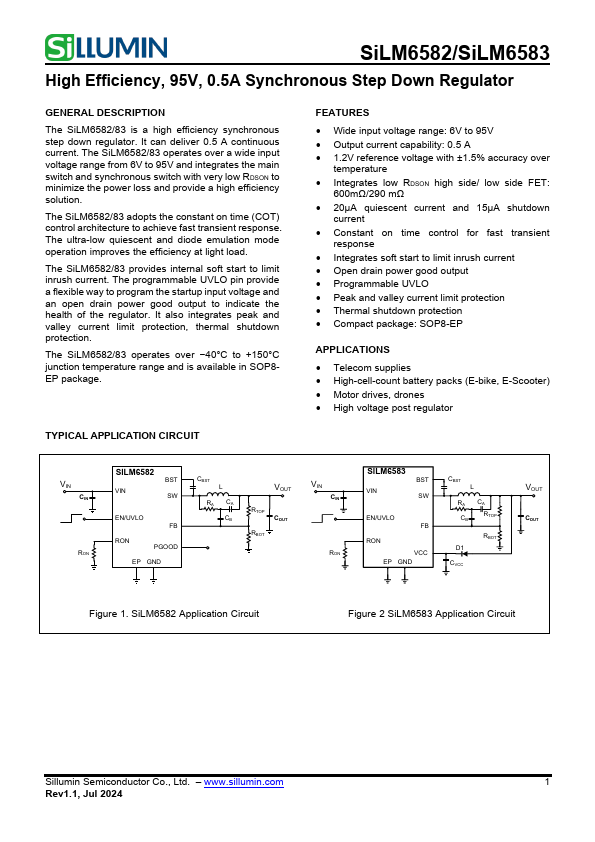

SiLM6582/SiLM6583 High Efficiency, 95V, 0.5A Synchronous Step Down Regulator GENERAL DESCRIPTION The SiLM6582/83 is a high efficiency synchronous step down regulator. It can deliver 0.5 A continuous current. The SiLM6582/83 operates over a wide input voltage range from 6V to 95V and integrates the main switch and synchronous switch with very low RDSON to minimize the power loss and provide a high efficiency solution. The SiLM6582/83 adopts the constant on time (COT) control architecture to achieve fast transient response. The ultra-low quiescent and diode emulation mode operation improves the efficiency at light load. The SiLM6582/83 provides internal soft start to limit inrush current.
