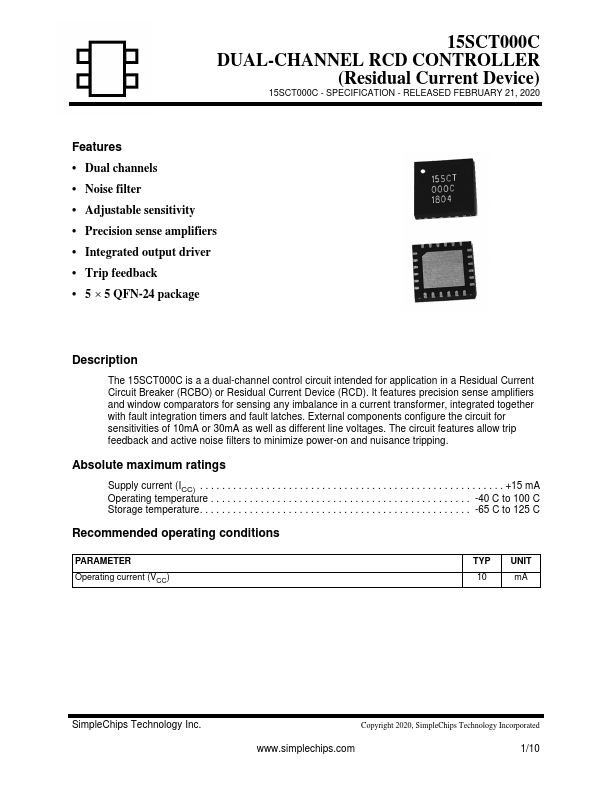

Features - Dual channels - Noise filter - Adjustable sensitivity - Precision sense amplifiers - Integrated output driver - Trip feedback - 5 × 5 QFN-24 package Description The 15SCT000C is a a dual-channel control circuit intended for application in a Residual Current Circuit Breaker (RCBO) or Residual Current Device (RCD). It features precision sense amplifiers and window parators for sensing any imbalance in a current transformer, integrated together with fault integration timers and fault latches. External ponents configure the circuit for sensitivities of 10m A or 30m A as well as different line voltages. The circuit features allow trip feedback and active noise filters to minimize power-on and nuisance tripping. Absolute maximum ratings Supply current (ICC) - - - - - - - - - - - +15 m A Operating temperature - - - - - - - - - . . -40 C to 100 C Storage temperature- - - - - - - - - . . . . -65 C to 125 C Remended operating conditions PARAMETER Operating current (VCC) TYP UNIT 10 m A Simple Chips Technology Inc. Copyright 2020, Simple Chips Technology Incorporated .simplechips. 1/10 15SCT000C DUAL-CHANNEL RCD CONTROLLER (Residual Current Device) - SPECIFICATION - RELEASED FEBRUARY 21, 2020 Pin...
