16SCT100 Datasheet | SimpleChips

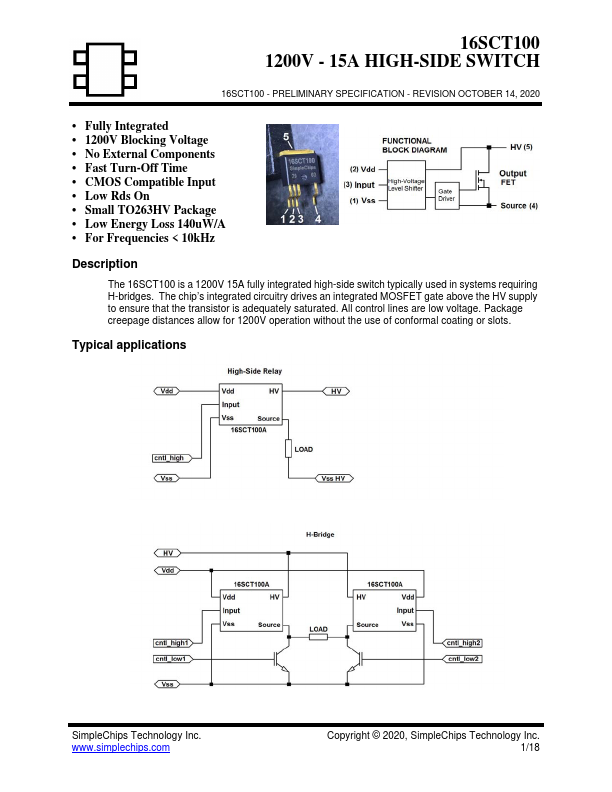

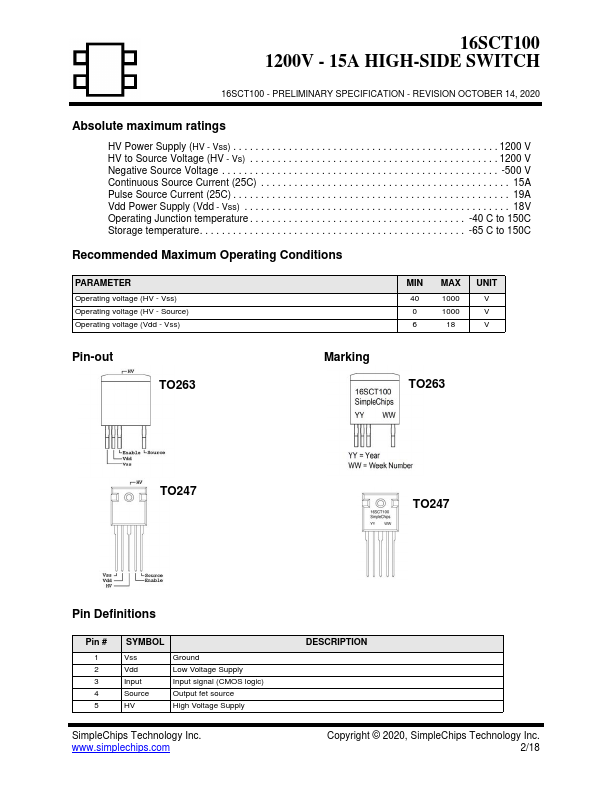

Description The 16SCT100 is a 1200V 15A fully integrated high-side switch typically used in systems requiring H-bridges. The chip’s integrated circuitry drives an integrated MOSFET gate above the HV supply to ensure that the transistor is adequately saturated. All control lines are low voltage. Package creepage distances allow for 1200V operation without the use of conformal coating or slots. Typical applications Simple Chips Technology Inc. .simplechips. Copyright © 2020, Simple Chips Technology Inc. 1/18 16SCT100 1200V - 15A HIGH-SIDE SWITCH - PRELIMINARY SPECIFICATION - REVISION OCTOBER 14, 2020 Absolute maximum ratings HV Power Supply (HV - Vss) - - - - - - - - - . . . 1200 V HV to Source Voltage (HV - Vs) - - - - - - - - - 1200 V Negative Source Voltage - - - - - - - - - - -500 V Continuous Source Current (25C) - - - - - - - - - 15A Pulse Source Current (25C) - - - - - - - - - - 19A Vdd Power Supply (Vdd - Vss) -...
