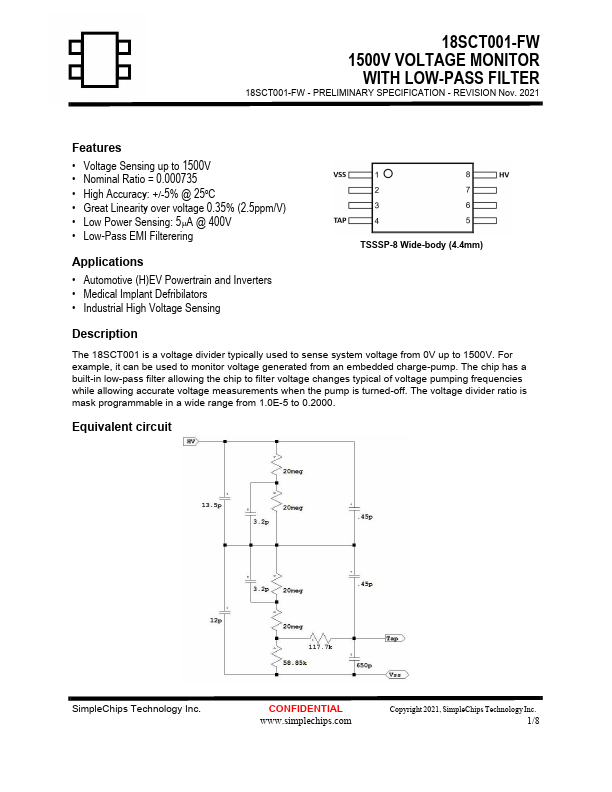

18SCT001-FW 1500V VOLTAGE MONITOR WITH LOW-PASS FILTER - PRELIMINARY SPECIFICATION - REVISION Nov. 2021 Features - Voltage Sensing up to 1500V - Nominal Ratio = 0.000735 - High Accuracy: +/-5% @ 25oC - Great Linearity over voltage 0.35% (2.5ppm/V) - Low Power Sensing: 5A @ 400V - Low-Pass EMI Filterering Applications - Automotive (H)EV Powertrain and Inverters - Medical Implant Defribilators - Industrial High Voltage Sensing TSSSP-8 Wide-body (4.4mm) Description The 18SCT001 is a voltage divider typically used to sense system voltage from 0V up to 1500V. For example, it can be used to monitor voltage generated from an embedded charge-pump. The chip has a built-in low-pass...
