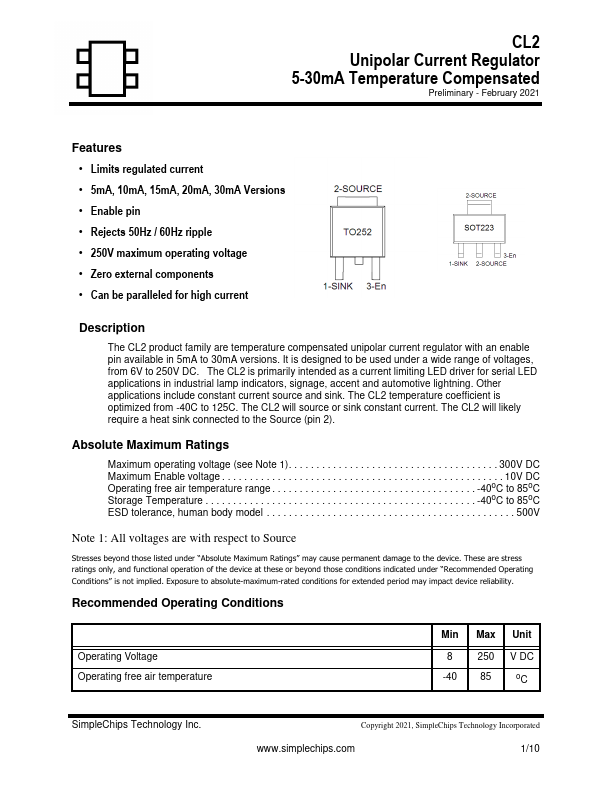

SimpleChips CL2
The CL2 product family are temperature compensated unipolar current regulator with an enable pin available in 5mA to 30mA versions. It is designed to be used under a wide range of voltages, from 6V to 250V DC. The CL2 is primarily intended as a current limiting LED driver for serial LED applications in industrial lamp indicators, signage, accent and automotive lightning.| Part No. | CL2 |
|---|---|
| Datasheet | CL2 Download |
| Manufacturer | SimpleChips |
| Description | Unipolar Current Regulator |
| Buy | Stock & Price |
FEATURES
● Limits regulated current● 5mA, 10mA, 15mA, 20mA, 30mA Versions
● Enable pin
● Rejects 50Hz / 60Hz ripple
● 250V maximum operating voltage
● Zero external components
● Can be paralleled for high current
DESCRIPTION
Other applications include constant current source and sink. The CL2 temperature coefficient is optimized from -40C to 125C. The CL2 will source or sink constant current. The CL2 will likely require a heat sink connected to the Source (pin 2).ABSOLUTE MAXIMUM RATINGS
Maximum operating voltage (see Note 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300V DC Maximum Enable voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V DC Operating free air temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40oC to 85oC Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40oC to 85oC ESD tolerance, human body model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
