SKY73092-459LF51 - 400-6000 MHz Quadrature Modulator

General Description

Skyworks SKY73092-459LF51 is an integrated quadrature modulator for the upconversion of complex modulated baseband/IF signals directly up to RF.

The device is designed for use in the 400 to 6000 MHz range.

Key Features

  • RF frequency operation range: 400 to 6000 MHz.
  • Baseband common-mode voltage: 1.50 V to 1.75 V.
  • Side-band suppression better than.
  • 45 dBc.
  • Carrier feedthrough of.
  • 40 dBm.
  • Noise floor of.
  • 161 dBm/Hz.
  • Single supply: 4.75 to 5.25 V.
  • QFN (24-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SKY73001 Direct Conversion Mixer Skyworks Solutions
SKY73009 Direct Quadrature Demodulator Skyworks Solutions
SKY73010 Direct Quadrature Modulator Skyworks Solutions
SKY73012 Direct Quadrature Demodulator Skyworks Solutions
SKY73020 High Gain and Linearity Diversity Downconversion Mixer Skyworks Solutions

Other Datasheets by Skyworks Solutions

Part Number Description
SKY73022-11 High Gain and Linearity Diversity Downconversion Mixer
SKY73025 High Gain and Linearity Diversity Downconversion Mixer
SKY73032-11 High Gain and Linearity Single Downconversion Mixer
SKY73033-11 High Gain and Linearity Single Downconversion Mixer
SKY73070 High Gain and Linearity Single Downconversion Mixer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

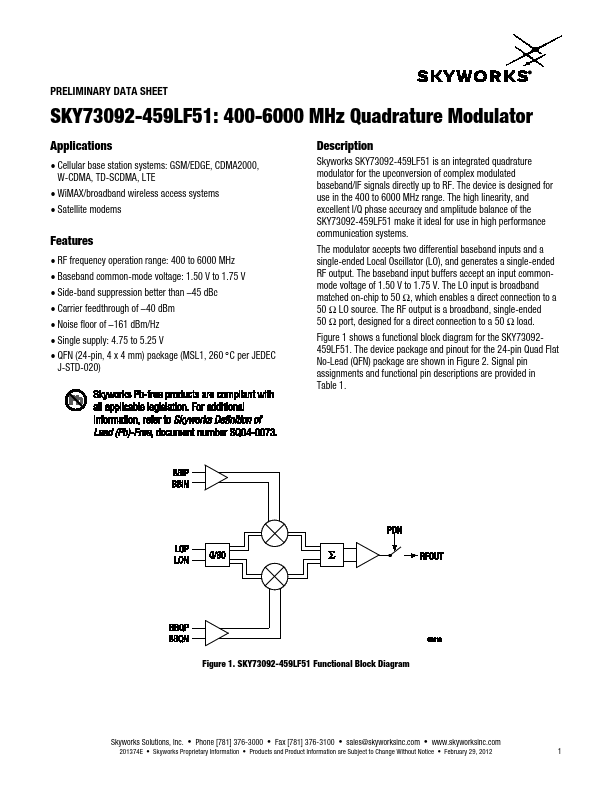

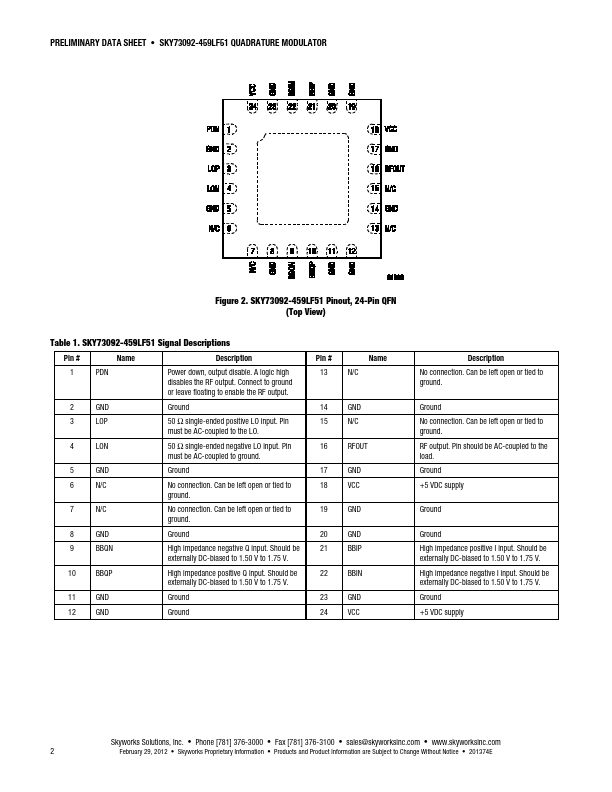

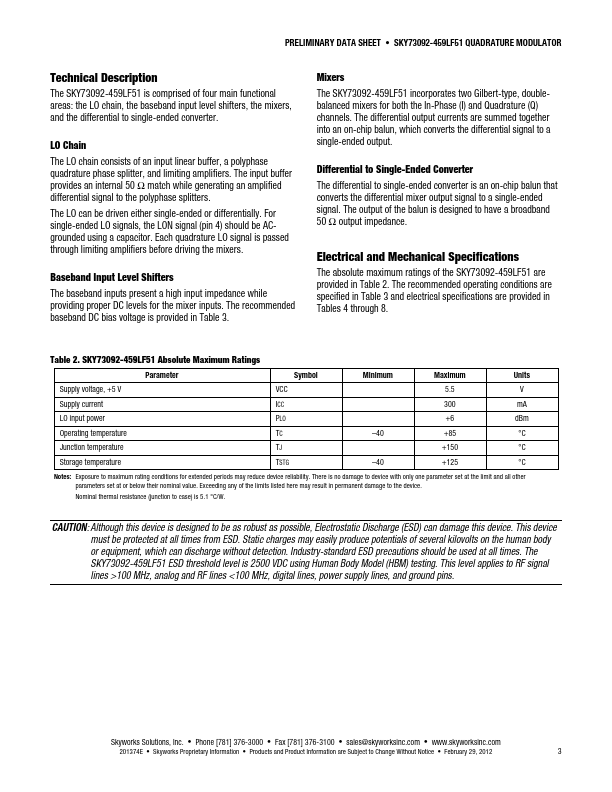

PRELIMINARY DATA SHEET SKY73092-459LF51: 400-6000 MHz Quadrature Modulator Applications • Cellular base station systems: GSM/EDGE, CDMA2000, W-CDMA, TD-SCDMA, LTE • WiMAX/broadband wireless access systems • Satellite modems Features • RF frequency operation range: 400 to 6000 MHz • Baseband common-mode voltage: 1.50 V to 1.75 V • Side-band suppression better than –45 dBc • Carrier feedthrough of –40 dBm • Noise floor of –161 dBm/Hz • Single supply: 4.75 to 5.25 V • QFN (24-pin, 4 x 4 mm) package (MSL1, 260 °C per JEDEC J-STD-020) Description Skyworks SKY73092-459LF51 is an integrated quadrature modulator for the upconversion of complex modulated baseband/IF signals directly up to RF. The device is designed for use in the 400 to 6000 MHz range.
