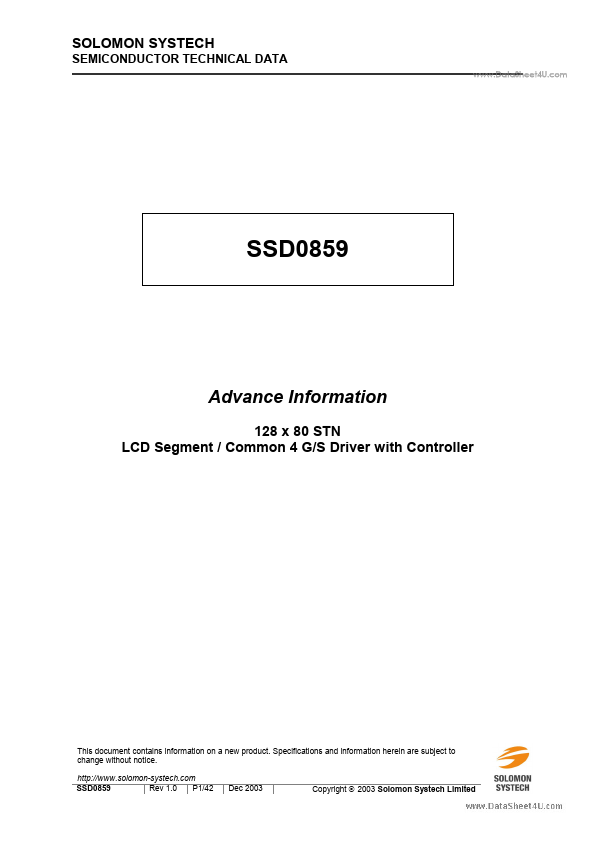

SSD0859 Datasheet PDF | Solomon Systech

Solomon Systech SSD0859

SSD0859 is a single-chip CMOS LCD driver with controller for liquid crystal dot-matrix graphic display system. With the special design on minimizing power consumption and die/package layout, SSD0859 is suitable for any portable battery-driven applications requiring long operation period and compact size.

Part No.	SSD0859
Datasheet	SSD0859 Download
Manufacturer	Solomon Systech
Description	128 x 80 STN LCD Segment / Common 4 G/S Drive
Buy	Stock & Price

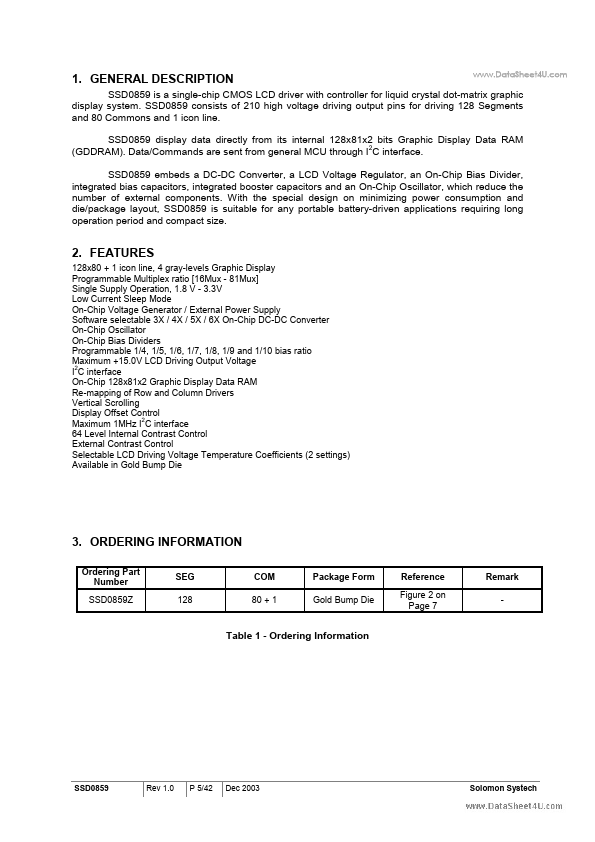

GENERAL DESCRIPTION

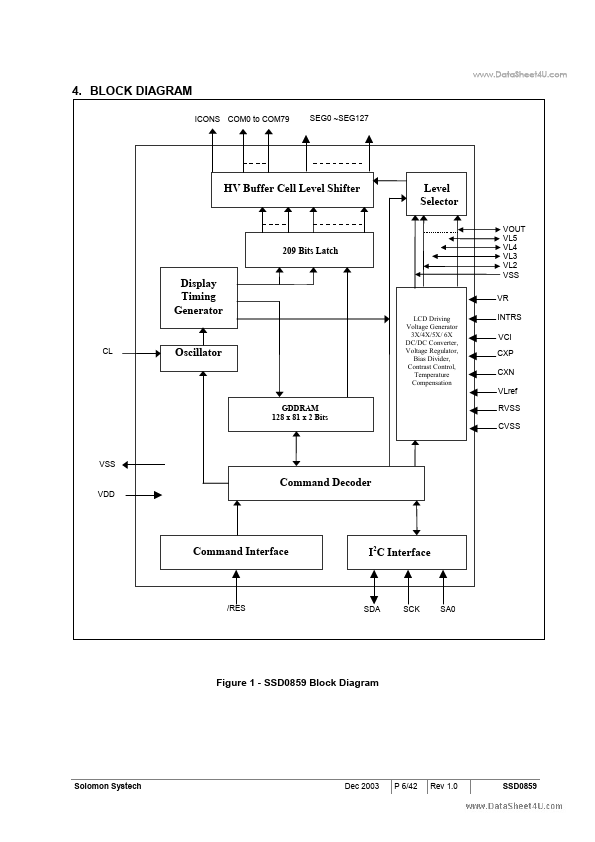

SSD0859 consists of 210 high voltage driving output pins for driving 128 Segments and 80 Commons and 1 icon line. SSD0859 display data directly from its internal 128x81x2 bits Graphic Display Data RAM (GDDRAM). Data/Commands are sent from general MCU through I2C interface. SSD0859 embeds a DC-DC Converter, a LCD Voltage Regulator, an On-Chip Bias Divider, integrated bias capacitors, integrated booster capacitors and an On-Chip Oscillator, which reduce the number of external components. 2.

FEATURES

128x80 + 1 icon line, 4 gray-levels Graphic Display Programmable Multiplex ratio [16Mux - 81Mux] Single Supply Operation, 1.8 V - 3.3V Low Current Sleep Mode On-Chip Voltage Generator / External Power Supply Software selectable 3X / 4X / 5X / 6X On-Chip DC-DC Converter On-Chip Oscillator On-Chip Bias Dividers Programmable 1/4, 1/5, 1/6, 1/7, 1/8, 1/9 and 1/10 bias ratio Maximum +15.0V LCD Driving Output Voltage I2C interface On-Chip 128x81x2 Graphic Display Data RAM Re-map...
